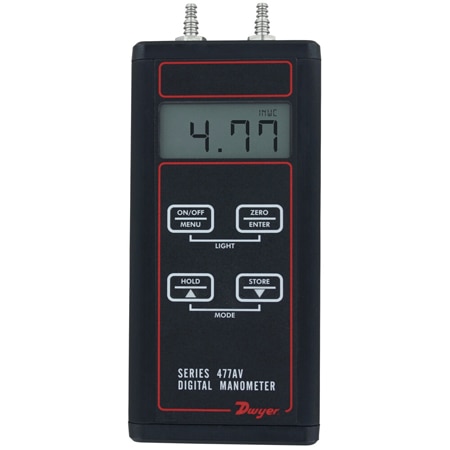

Dwyer 477AV-6 Handheld Digital Manometer for Pressure, Flow & Velocity ± Calibration (± 0.5 %, 115400 FPM, 30 psi, Barbed Connection, 1/8 in)

Weight: 10.2 oz

Accuracy: ± 0.5 %

Compliance: CE

Hysteresis: ± 0.1%

Display Note: 0.42˝ (10.6 mm) 4 digit LCD

Display Type: LCD

Accuracy Note: ± 0.5% FS, 60 to 78°F (15.6 to 25.6°C); ± 1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C)

Pressure, Max: 30 psi

Pressure, Min: 0 psi

Measurement Type: Flow, Pressure, Velocity

Number of Digits: 4

Air Velocity, Max: 115400 FPM

Materials, Wetted: Consult Factory

Supply Power Type: Battery

Media Compatibility: Air, Argon, Compatible Gases, Nitrogen

Battery Size and Type: Alkaline 9V

Display Measuring Units: cfm, cm w.c., fpm, fps, ft w.c., hPa, in w.c., inHg, k/h, knot, kPa, m3/h, m3/s, mile/hr, m/s, mbar, mm w.c., mmHg, mph, oz/in2, Pa, psi

Operating Pressure, Max: 60 psi

Process Connection Size: 1/8 in

Process Connection Type: Barbed Connection

Storage Temperature, Max: 176 °F

Storage Temperature, Min: -4 °F

Operating Temperature, Max: 140 °F

Operating Temperature, Min: 0 °F

Compensated Temperature, Max: 104 °F

Compensated Temperature, Min: 32 °F
