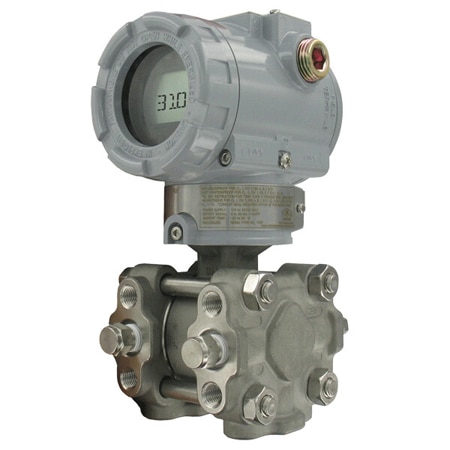

Dwyer 3100MP-1-FM-1-1-LCD 3100MP Smart Pressure Transmitter for Flow/Level, HART, Hazardous Locations (Differential, 6 inH₂O, NPT Female, 1/4 in, Hazardous Location Rated, IP66, NEMA Type 4X)

Weight: 3.9 kg

Accuracy: ± 0.075 %

Compliance: CE, FM

Damping Time: 0.25 to 60 s

Display Type: LCD

Accuracy Note: ± 0.075% FS (@ 20°C)

Output Detail: HART® Communication

Output Signal: Current, HART

Pressure Type: Differential

Pressure, Max: 6 inH₂O

Pressure, Min: 0 inH₂O

Response Time: 0.12 s

Burst Pressure: 10,000 psi Maximum

Proof Pressure: Up to 2000 psi

Supply Voltage: 11.9 to 45 Vdc

Turndown Ratio: 100:1

Compliance Note: CE, FM, ATEX option available (consult factory)

Loop Resistance: Operation: 0 to 1500 Ω, HART® Communication: 250 to 500 Ω

Thermal Effects: ± 0.125% span/32°C

Number of Digits: 5

Electrical Output: 4 to 20 mA, HART

Enclosure Ratings: Hazardous Location Rated, IP66, NEMA Type 4X

Materials, Wetted: 316 Stainless Steel

Supply Power Type: DC

Long Term Stability: ± 0.125% FSO/year

Media Compatibility: Air, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Oxygen, Steam

Electrical Connection: 1/2 in NPT female Conduit with Screw Terminal block

Process Connection Size: 1/4 in

Process Connection Type: NPT Female

Process Temperature, Max: 120 °C

Process Temperature, Min: -40 °C

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -30 °C
