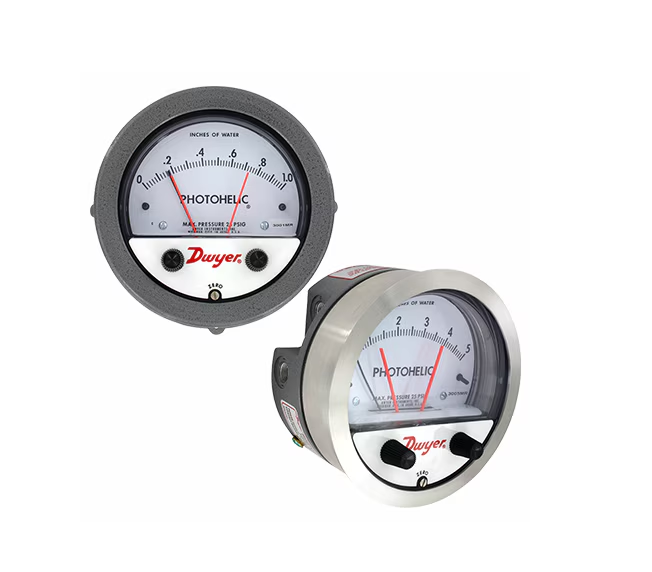

Pressure Type: Differential
Pressure Port Size: 1/8" NPT Female
Pressure Range: 0 to 1 inH2O
Accuracy Class: > 0.25%
Dial Size: 5"
Alarm Types (DC/AC): SSR
GAGE SPECIFICATIONS
Service: Air and non-combustible, compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±2% of FS (3000-0 ±3% of FS). (3000-00 ±4% of FS).
Pressure Limit: -20˝ Hg to 35 psig (-0.677 bar to 1.72 bar). MP option: 35 psig (2.41 bar), HP option: 80 psig (5.52 bar).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).
Process Connections: 1/8˝ female NPT (duplicated side and back).
Size: 4˝ (101.6 mm) dial face, 5˝ (127 mm) OD x 3-1/8˝ (79.38 mm); -SS Bezel: 4-3/4˝ (120.7 mm) OD x 2-21/32˝ (67.5 mm).
Weight: 1.8 lb (816 g).
Switch Type: Each set point has a solid state relay.
Switching Voltage: 20 to 280 VAC (47 to 63 Hz).
Switching Current: 1.0 A (AC) max., 0.01 mA (AC) min., (2) SPST NO.
Electrical Connections: 18˝ (46 cm) cable assembly with 6 conductors, optional lengths to 100´ (30.5 m).
Power Requirements: 24 VDC, regulated ±10%.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point: Adjustment Adjustable knobs on face.
Compliance: CE.
See more detail information in the Datasheet
