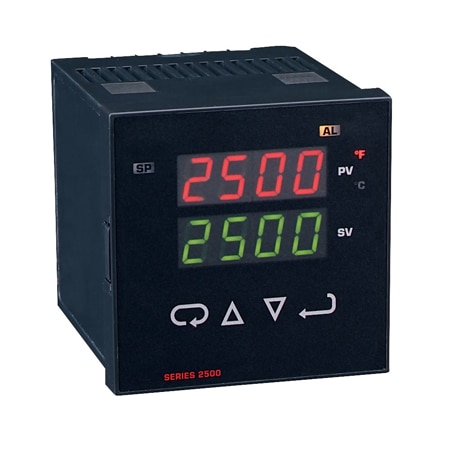

Dwyer 25112 2500 Series 1/4 DIN PID Temp Controller, Multi-Thermocouple, Water-Resistant

Weight: 13 oz

Accuracy: ± 0.25% span ± 1°

Input Type: Thermocouple

Output Note: Switched Voltage (non-isolated): 5 VDC @ 20 mA.

Display Note: Two-4 digit, 7 segment, 0.56" high LED

Display Type: LED

Memory Backup: Non-Volatile

Control Action: Selectable for Reverse (Usually Heating) or Direct (Usually Cooling)

Control Output: SSR Relay

Supply Voltage: 100 to 240 Vac/132 to 240 Vdc

Impedance Input: 3 MΩ

Output Type (A): Voltage Pulse

Output Type (B): N/A

Number of Digits: 4

Enclosure Ratings: IP65, NEMA Type 4X

Power Consumption: max 5 VA

Supply Power Note: 100-240 VAC nominal, ± 10%, 50-400 Hz, single phase; 132-240 VDC nominal, ± 10%

Supply Power Type: AC/DC

Display Resolution: 1° / 0.1°

Mounting Orientation: 1/4 DIN

Voltage Output Range: 5 Vdc

Temperature Sensor Type: Thermocouple

Operating Temperature, Max: 131 °F

Operating Temperature, Min: 14 °F

Thermocouple Input Range Note: Type K: -328 to 2372°F; Type J: -148 to 2192°F; Type T: -328 to 752°F; Type E: 32 to 1112°F; Type L: -328 to 1562°F
