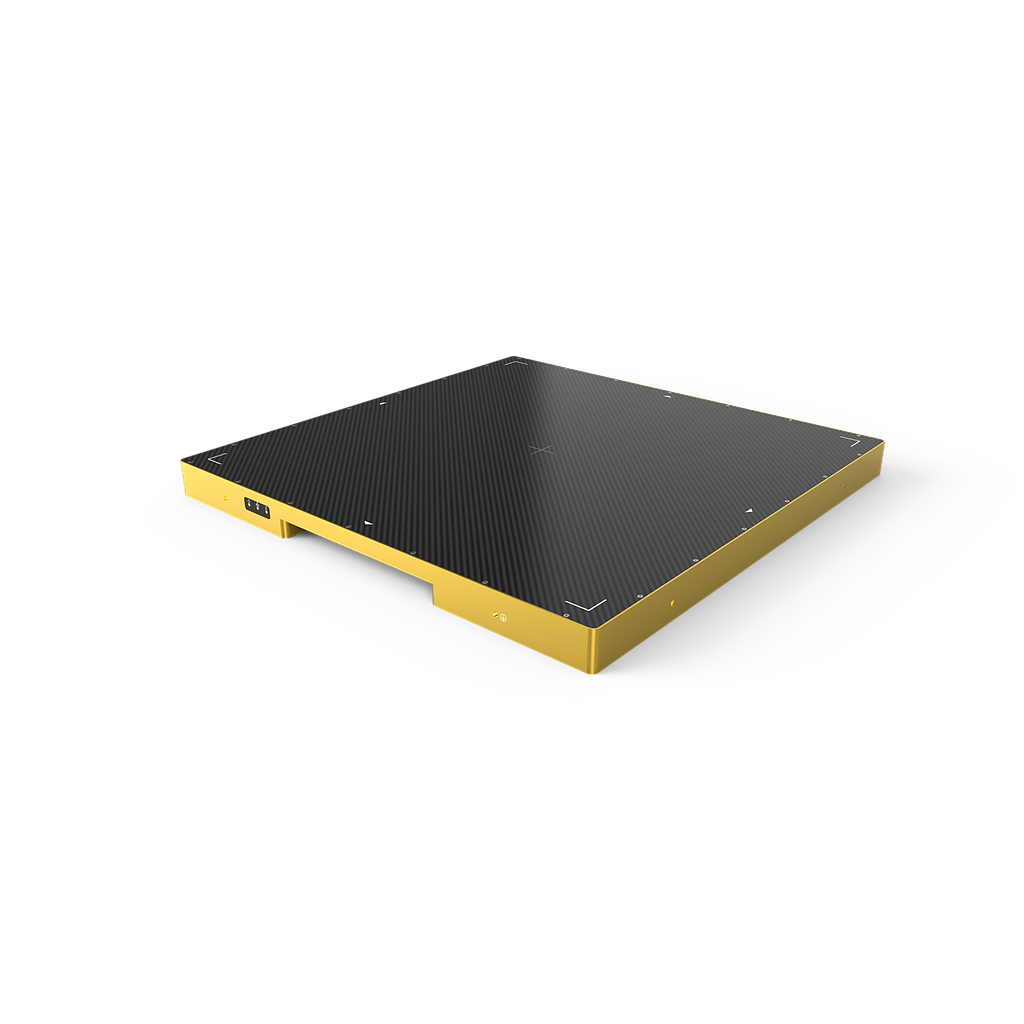

DT Detection Technology X-Panel 4343a FTI-CSV-X Flat panel detector (a-Si-TFT, 4288 x 4288, 100 μm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 430 x 430 mm

Pixel matrix: 4288 x 4288

Pixel pitch: 100 μm

ADC: 16 bits

Interface:

Data interface: Gigabit ethernet

Max frame rate: 2 fps (1×1) / 8 fps (2×2)

Mechanics:

Dimensions (H x W x D): 470 x 470 x 34.5 mm

Weight: 10.8 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 20.5 W

Applications: Component counting, casting, pipe welding
