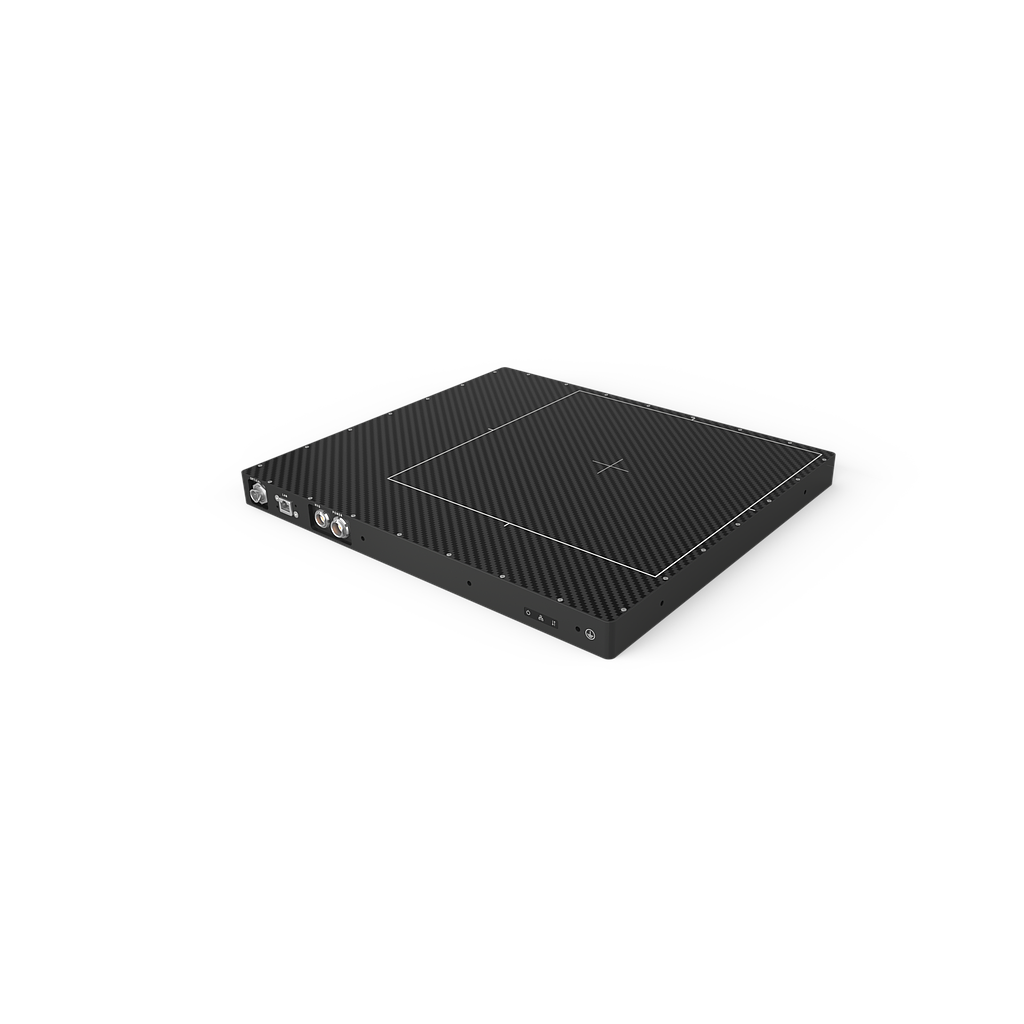

DT Detection Technology X-Panel 3030a FPI-CSV-H Flat panel detector (a-Si-TFT, 2048 x 2048, 140 μm)

Technology:

Sensor: a-Si-TFT

Scintillator: CsI

Active area: 286 x 286 mm

Pixel matrix: 2048 x 2048

Pixel pitch: 140 μm

ADC: 16 bits

Interface:

Data interface: Optical fiber

Max frame rate: 18 fps (1×1)

Mechanics:

Dimensions (H x W x D): 418 x 372 x 31.4 mm

Weight: 9.1 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IP65

Power:

Dissipation: 14.5 W

Applications: Linac, High Energy NDT
