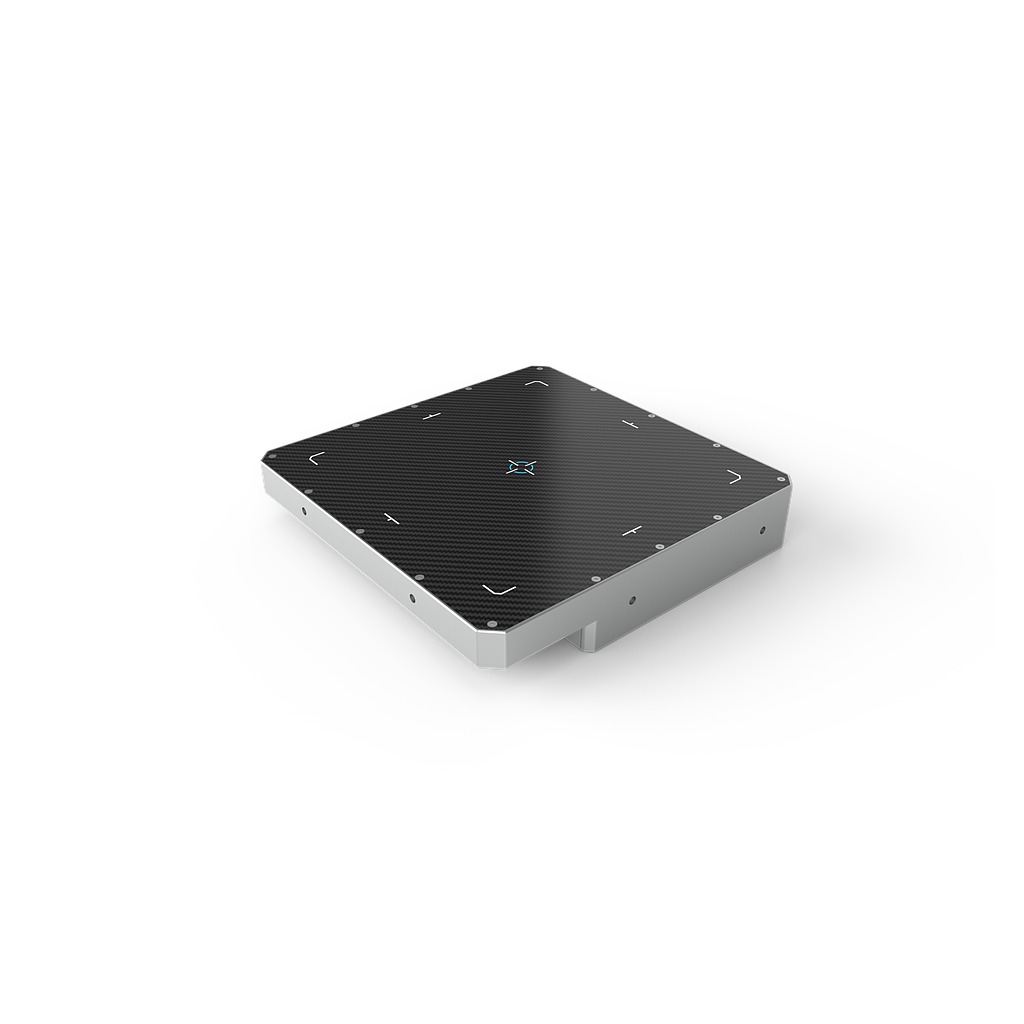

DT Detection Technology X-Panel 1818z FDI-CSV Flat panel detector (IGZO-TFT, 2048 x 2048, 84 μm)

Technology:

Sensor: IGZO-TFT

Scintillator: CsI

Active area: 172 x 172 mm

Pixel matrix: 2048 x 2048

Pixel pitch: 84 μm

ADC: 16 bits

Interface:

Data interface: 10 G Ethernet

Max frame rate: 30 fps (1×1)

Mechanics:

Dimensions (H x W x D): 219 x 219 x 40 mm

Weight: 2.3 kg

Environmental:

Temperature: 10~35°C (operating); -10~50°C (storage)

Humidity: 30~70% RH (non-condensing)

IP rating: IPX0

Power:

Dissipation: 25.5 W

Applications: SMT, battery inspections
