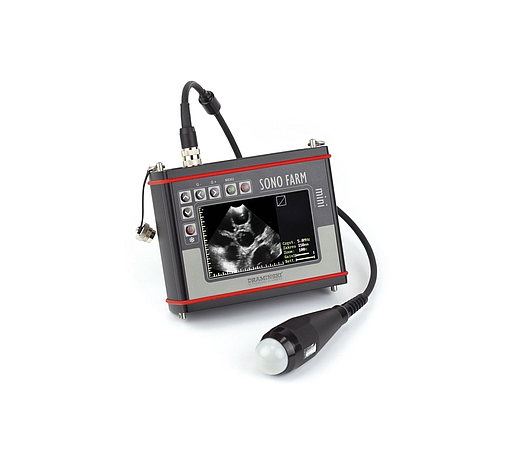

DRAMINSKI SonoFarm Mini Veterinary ultrasound scanner (with 01 abdominal probe)

Technical specification

Dimensions17,5 x 14,5 x 6,0 cm

Unit weight1010 g

Probe weight250 g

Battery weight280 g

Display modesB Mode – real time imaging

Frequency and type of probessector, mechanical (rectal or abdominal or „Down Fire”)

3.0 – 7.0 MHz (the central frequency of each probe – 5.0 MHz)

Penetration depthUp to 25 cm for abdominal and „Down Fire” probes

rectal probe: 7, 8, 10 and 12 cm

Scanning angle90° – abdominal and „Down Fire” probes

180° – rectal probe

Display5.0″, LCD LED

KeyboardMembrane

Power supplyExternal battery pack Li-Ion 14.4 V, 3.1Ah

Continuous operation on fully charged batteryabout 6 h

Charging time: 2,5 h

Battery exhausted indicatorautomatic – a sound signal and a graphical indicator

Operating temperature range+5°C to +40°C

Storage temperature range+0°C to +45°C

The set includes:

the device with LCD screen and keyboard

5.0 MHz sector probe, abdominal (For SFM2 A)

a set of belts: neck and waist belts

external battery pack: Li-Ion 14.4V/3.1A

dedicated battery pack charger ( with wires )

transport suitcase with a foam filler

ultrasonic Gel

the manual

Why is it worth having the DRAMINSKI SonoFarm mini?

You will quickly appreciate positive qualities of this ultrasound scanner designed to manager livestock, because:

	YOU WILL INCREASE ECONOMIC INDICATOR OF YOUR LIVESTOCK Your profit highly depends on how fast you are able to detect pregnancy. Thanks to quick detection of your animals condition you will be able to manage the process of procreation more efficiently, you will be able to monitor the pregnancy and first of all detect non-pregnant females. All these will help you to increase economic indicator of your farm.
	YOU WILL GUARANTEE THE HIGHEST LEVEL OF SAFETY Having your own ultrasound scanner, you reduce the risk of infecting your flock with disease from another farm. Parvovirus, flu, salmonellosis, chlamidiosis, brucellosis, FMD, rotaviruses and circoviruses are just a few examples of infections and pathogens you can protect you livestock from if you guarantee a high level of biological security. The same equipment used by different farmers is one of the most common ways for disease transmission.
	YOU CAN EASILY TAKE IT WITH YOU It is light. Its weight is just over 1.5 kg. It is small. Thanks to miniaturization of the electronic systems its dimensions are 17.5 cm x 14.5 cm x 6.0 cm. Thanks to its small weight and dimensions as well as extremely effective batteries your work in the field will be a pleasure.
	YOU WILL APPRECIATE HOW EASY IT IS TO OPERATE THE SonoFarm mini The ultrasound scanner has all basic and the most important functions to detect animal pregnancy. It operates in B mode. Its rich intuitive menu navigation makes available all necessary options: freeze, gain and focus.
	IT GUARANTEES A CONTINUOUS WORK Having a spare battery which takes 2.5 h to be charged and can work extremely long, that is 6 h, all you need is a 5-second break to change the battery and continue working.
	IT WILL HELP YOU TO PERFORM PROFESSIONAL DIAGNOSTICS The DRAMINSKI SonoFarm mini was designed to detect pregnancy of small ruminants, pigs and large domestic animals. Depending on the probe, abdominal or rectal, you can confirm or exclude pregnancy of a pig, sheep, cow and goat. A multipurpose abdominal-rectal probe “Down Fire” is an excellent solution for specialists of insemination who work with different species.
	CHOOSE A PROBE ADJUSTED TO YOUR NEEDS The SonoFarm mini operates with three changeable mechanical probes with a wide viewing angle: rectal 180º, abdominal 90º and rectal-abdominal “Down Fire” 90º, which can be used for abdominal examination (sheep, pig, goat) and rectal examination (cow). Choosing the SonoFarm mini depending on the livestock, you choose a probe adjusted to your needs among the three available.
	DO NOT WORRY ABOUT ITS DURABILITY An aluminum body of the scanner guarantees its extreme durability. More than that, the DRAMINSKI SonoFarm mini has a resistible, easy to clean plastic case which protects the device against unfavourable influence of high and low temperatures.
	DO NOT WORRY IN CASE OF A MALFUNCTION We know how reliable our ultrasound scanners are, that is why we give a 2-year warranty.
