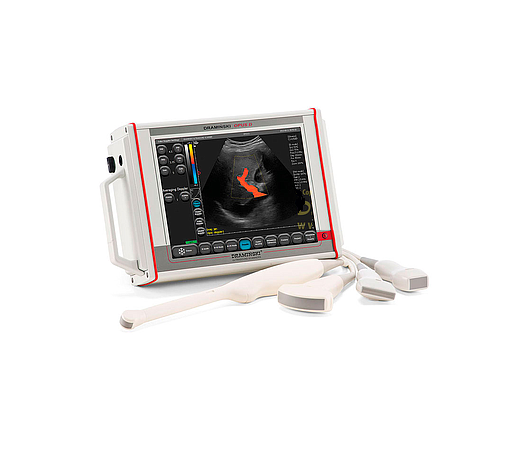

DRAMINSKI OPUS D Ultrasound Scanner
ManufacturerDRAMINSKI(View more products from this manufacturer)
ModelOPUSD
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Main attributes of the ultrasound scanner
Perfect image
- Screen: LCD with a backlight LED 10.4”, LCD touch panel
- Doppler functions: PWD (Pulse Wave Doppler), Color Doppler, PDI (Power Doppler)
- Imaging modes: B Mode, B+B Mode, B+M Mode
Cine loop record
Cine loop of any length allows for accurate checking of the examined organ.
- Integrated PC
- Memory: easy image and cine loop saving to an internal disk and ability to export images
- External ports: USB 2.0, LAN, VGA
Technical data | ||
| Unit weight | 3.5 kg (without attached battery) | |
| Dimensions | 32.5 x 21.0 x 8.0 cm | |
| Frequency | 2 to 14 MHz (depending on the probe type used) | |
| Image presentation (projection) mode | B Mode, B+B Mode, B+M Mode | |
| Doppler | PWD (Pulse Wave Doppler), Color Doppler, PDI (Power Doppler) | |
| Probes | convex 2–8 MHz, microconvex 4–9 MHz, linear 60 mm 5–10 MHz, linear 40 mm 6–14 MHz, endovaginal 9–4 MHz, endorectal 5–10 MHz | |
| Dynamic focus | yes | |
| Number of head ports | one port | |
| Monitor | 10.4” LCD with LED backlight, LCD touch panel | |
| User panel | menu in English, control of all parameter image optimisation setting | |
| Dimensioning | high-quality imaging, 256 greyscale shades, extensive diagnostic possibilities, full dimensioning options | |
| Power supply | 1. AC adapter – power in: 100-240 V AC, 50-60 Hz, ~1.5 A; power out: 18 V DC, ~3.34 A 2. bartery pack Li-Ion, 14.4V, 6,2Ah | |
| Power consumption | ~ 2,2 A | |
| Continuous operation on fully charged battery | about 2 hours | |
| External ports | USB 2.0, LAN, VGA | |
| Memory | image and cine loop saving to an internal disk with description, pacient’s data and date | |
| Low bartery indicator | graphic presentation of battery level | |
Working temperature | +10°C to +45°C | |
| Storage temperature | +5°C to +45°C | |
Portable ultrasound
Light, fully mobile. Operates on AC power or battery. Complex ultrasound diagnostics at the patient’s bed.
… and more
- Changing a probe without turning off the device.
- The system automatically recognises a connected probe.
- Presets for various parts of the human body (abdominal membrane, small organs, vessels, etc.).
- Personal settings.
- Accessories: a stand on wheels, metal base, extra batteries, transport case
The set includes:
- body,
- support,
- stand (optional),
- one probe (optional: convex 2-8 MHz/50 EP, convex 2-5MHz/60EP, linear 6-14MHz/40EP, linear 5-10 MHz/40EP, linear 5-10MHz/60EP ),
- power supply,
- charger with a cable,
- two batteries (an option to buy more),
- transport case,
- scriber,
- manual.
