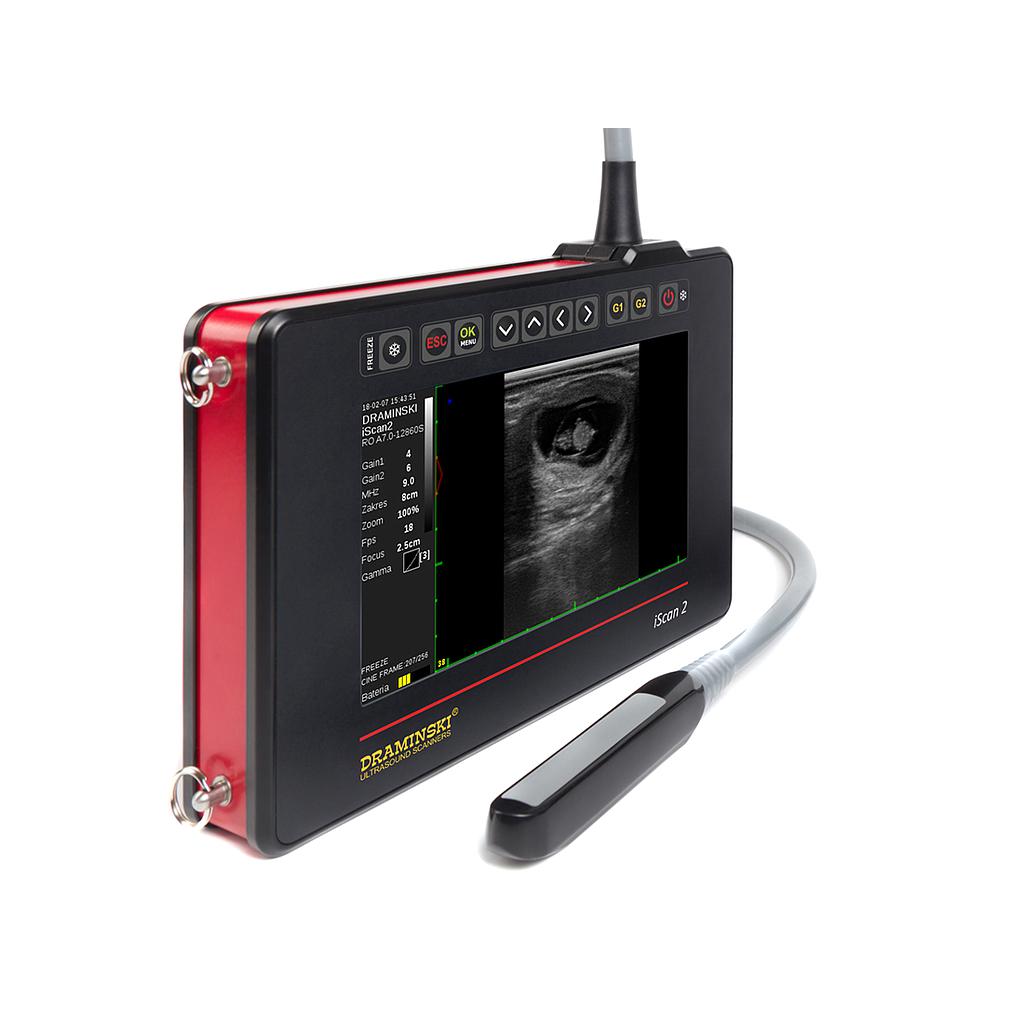

DRAMINSKI iScan 2 Ultrasound Scanner (with linear probe)

Symbol:

• iS II C – iScan II with convex rectal probe

• iS II L – iScan II with linear rectal probe

Dimensions: 22.0x16.5x6.7cm

Unit weight: 2400g with probe and battery pack

Battery weight: 460g

Display modalities:

• Screen

• Google

• Image rotated by 90° to the left or right

• Image rotated by 180°

Grey scale: 256 degrees

Gamma: 8 settings

Display Modes:

• B Mode

• B+B Mode

• B+M Mode

Image management:

• Freeze (image freeze)

• Dimensioning

• Zoom 60-200% with 20% increase rate

• Saving to the internal memory

• Exporting to an external storage device

Measurement:

• Distance

• Surface (based on 2 measurements),

• Volume

• Netting

• Age tables (Cow CRL, Cow BPD, Horse DSG, Horse DO, Sheep CRL, Lama BPD)

• Backfat + muscle

Data saving and storage: data saving and storage image with cine loop measurements (256 frames)

Image storage: 200

Cine loop storage: 200

Quick Access menu: yes, customized

Presets: yes, to be created by the user

Probe:

• Broadband probes, multifrequency: linear rectal 7MHz (from 4~9MHz)

• Active field = 60mm,

• 128 elements

• Range up to 15cm

• Convex rectal 5MHz (from 3~7.5MHz)

• Radius = 61.2cm

• Scanning angle = 64

• 128 elements

• Range up to 25cm

Screen: 7.0’’ diagonal, IPS LCD LED, 800x480px

Keyboard: membrane type, watertight

Power supply: li-ion 14.4V, 6.8Ah

Continuous operation with full-charged battery: up to 7 hours

Charging time: 4 hours

Low battery indicator: automatic, graphic indicator

Water and dust resistance: IP65

• Complete protection against dust

• Protection against water stream (12.5L/min) directed at the casing from any side

Working temperature range: -15°C~45°C

Recommended storage temperature: 0°C~45°C

Optional accessories:

• Goggles

• Extension for linear rectal probe

• Sun protection shields

• Gel spacer for linear rectal probe
