DRAMINSKI 4VET

Name: DRAMINSKI 4VET
Brand: DRAMINSKI

ManufacturerDRAMINSKI

Model4VET

OriginFinland

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

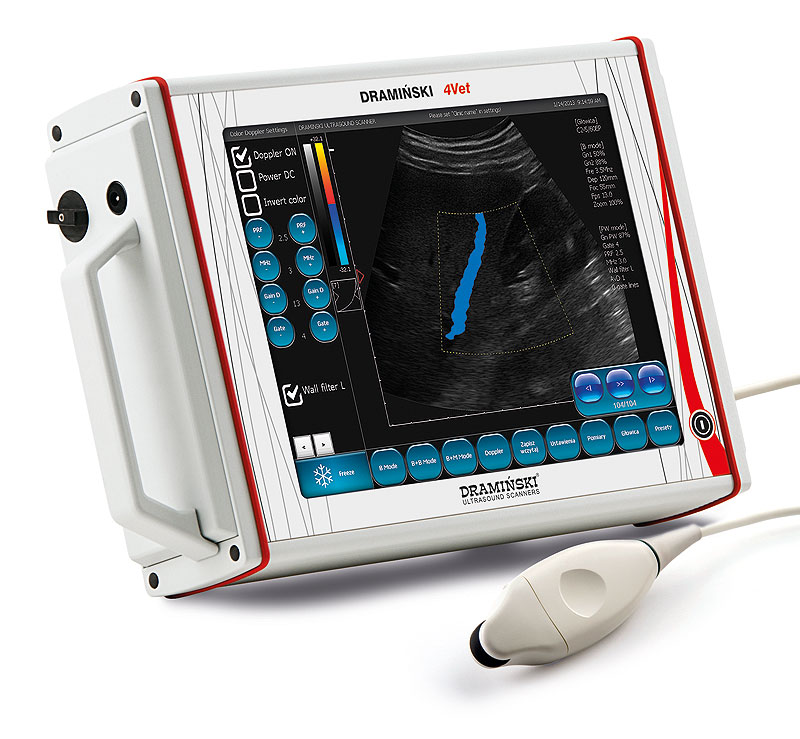

Requirements with regard to ultrasound scanners placed by veterinary practitioners inspired DRAMIŃSKI to create a device with an exceptional image quality with a colour Doppler function. 4Vet ultrasound scanner is a small device equipped in a touch screen, resistant casing and dual power source.

Why should you have DRAMIŃSKI 4Vet?

Excellent image qualityThe ultrasound uses fully digital imaging technology in the following modes: B, B+B, B+M, colour Doppler. A built-in LCD screen with a high resolution LED display and a wide viewing angle guarantees excellent image quality. In addition, application of post-processing technology for image processing allows for advanced diagnostics.

Functionality
- 10.4″ touch screen which can be used in gloves,
- easy access to image usage options (gain, focus, zoom, gamma, depth range scanning, frequency of the head),
- managing individual settings (presets),
- storing video sequences (cine loop) and ultrasound images in the device’s memory,
- cooperates with many types of electronic probes,
- operates on AC power or battery,
- transmission of saved images and video sequences to an external carrier via USB2.0,
- possibility of connecting a printer via USB2.0 to print images,
- easy to clean and disinfect.

Stationary and portable
The 4Vet ultrasound is excellent as a stationary device. At the same time, owing to its small weight, measurements and battery power it can be used as a portable ultrasound. Application of an aluminium casing makes the device resistant to frequent transport.

The set includes:

scanner’s body,
table support,
a stand for the scanner (an extra option available on the client’s request),
1 of 3 probes available (convex 2-8 MHz, linear rectal 4-9 MHz, microconvex 4-9 MHz),
power supply,
power cable for the ultrasound scanner’s power supply,
2 packages of external batteries,
charger,
power cable for the charger,
bottle of ultrasound gel,
scriber (optional),
transport bag-case (optional),
manual.

Technical data
Dimensions		32.5 x 21.0 x 8.0 cm
Unit weight		3520 g without probe and battery pack
Battery’s weight		480 g
Display modes		Real-time B Mode B+B Mode (Dual Mode Display) B+M Mode Doppler (PWD, CPD) – optional
Display		10.4” LCD with LED backlight, LCD touch panel
Probes		convex 2–8 MHz, microconvex 4–9 MHz, linear 60 mm 5–10 MHz, linear 40 mm 6–14 MHz, endorectal 4–9 MHz
Control		resistance touch panel
Memory		image and cine loop saving to an internal disk with description, pacient’s data and date
PC transmission		via USB 2.0
Power supply		1. AC adapter; power in: 100-240V AC, 50-60Hz, max 1.1A; power out: 15V DC / 3.2A 2. bartery pack Li-Ion, 14.4V, 6,2Ah
Power consumption		approx. 2,2 A
Continuous operation on fully charged battery		about 2 h
Charging time		2 h (charger type: 2840 LI)
Low bartery indicator		automatic – acoustic signal and graphic presentation of battery level
Working temperature		+10°C to +45°C
Storage temperature		+5°C to +45°C
