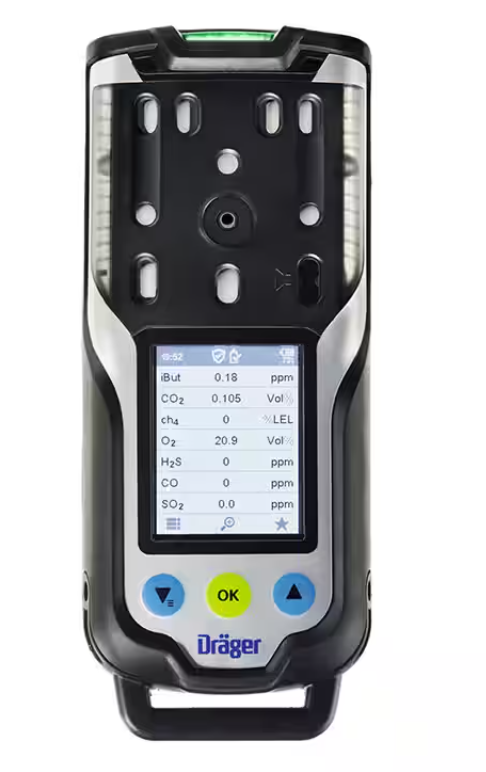

Drager X-am 8000 Multi Gas Detectors (Main unit, not included sensor)

Dimensions (H x W x D): 7 x 3 x 1.7 in (179 x 77 x 42 mm)

Weight: Approx. 17.5 oz (495 g), depending on sensor configuration, without strap, without pump | Approx. 19 oz(550g), depending on sensor configuration, without strap, with pump

Housing: Durable two-component housing

Display: High-contrast color display

Temperature: -4 to 122 F (-20 to 50 C)

Pressure: 700 to 1,300 hPa (measuring function) | 800 to 1,100 hPa (use in explosion-hazard areas)

Relative humidity: 10 to 90 % (short-term up to 95 %) r.h.

Alarms

Visual: 3 LED 'red' (gas alarms), 3 LED 'yellow' (device alarms)

Acoustic: Multi-tone, typically 100 dB at 12 in (30cm)

Vibration

Ingress protection class: IP 68

Energy supply: Lithium-ion battery, rechargeable, inductive charging

Operating times (Diffusion):

With CatEx and 3 EC sensors: Typically 24 hours

With IR and 3 EC sensors: Typically 22 hours

With 3 EC sensors: Typically 120 hours

With CatEx, PID and 3 EC sensors: Typically 17 hours

With IR, PID and 3 EC sensors: Typically 16 hours

With CatEx-, IR- and 3 EC sensors: Typically 14 hours

PID only: Typically 42 hours

Charging times: Typically 4 hours after use during a shift of max. 10 hours

Start-up times: Typically <60 seconds for standard sensors

Data storage: 24 MB, e.g. at 10 minutes per hour of gas exposure with measuring values changing by the second on all 7 channels: approx. 400 hours

Pump operation: Max. hose length 148 ft (45 m)

Approvals:

Marking Explosion Protection:

ATEX />IECEx:

I M1, II 1G

Ex da ia I Ma, Ex da ia IIC T4 Ga

cCSAus:

Class I, Zone 0, AEx da ia IIC T4 Ga

Class II, Div. 1, Gr. E, F, G

C22.2 No. 152, ANSI-ISA 12.13.01:2000

Consists of: Device with power supply (Lithium-ion battery), data logger, shoulder strap and charger (optional). A fully functioning device requires up to 5 sensors and an optional integrated pump.
