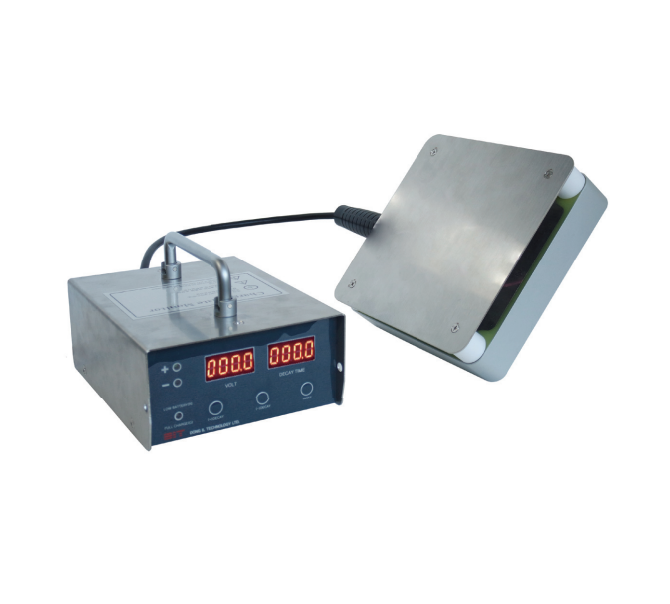

DONG IL (DIT) ARC-P102ZB Charge Plate Monitor (20pF ± 2pF)

Controller - Dimension: 63mm(H) × 125mm(W) × 154mm(D)

Controller - Weight: < 1.2kg

Plate - Dimension: 150mm(H) × 150mm(W) × 43mm(D)

Plate - Weight: < 0.8kg

Capacitance (Plate): 20pF ± 2pF

Sensor Type: Oscillating chopper type (DIT)

Input Voltage: 12Vdc ± 10%

Input Current: 1A

Battery Specification: NiMH 7.2V 6 pack

Battery Charging Time: 3 hrs (Until full charge)

Battery Use Time: 8 hrs (Full charge statement)

Ion Balance Measurement:

Range: 0 to ±1100V DC or peak AC

Bandwidth (-3dB): DC to 80Hz

Stability: < 10% of initial voltage within 5 minutes (40% RH at 25°C)

Decay Time Measurement:

Start/Stop Accuracy: 2L/min (±10%) [Under 0.1MPa]

Time Resolution: 0.1 sec. (0.1 ~ 999.9 sec)

Range: Start voltage: ±1 ~ ±1000V / Available 1V intervals; Stop voltage: 0 ~ ±999V

Material: Controller & Plate: SUS 1.2T

Functions: (+) Decay-time, (–) Decay-time, Reset

Display: FND 2 set (Plate voltage, Decay time)

Communication: USB communication

Ambient Temperature: 5°C ~ 35°C

Ambient Humidity: RH 40% ~ 80% (No condensation)

Storage Temperature: 0°C ~ +50°C (32°F ~ 122°F)

Storage Humidity: RH 80% under (No condensation)
