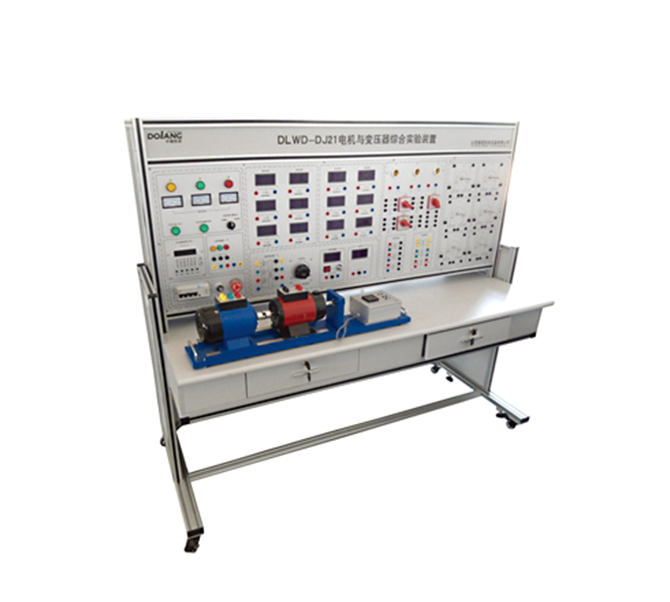

DOLANG DLWD-DJ21 Electric Motor and Transformer Comprehensive Experimental Device

Electrical Training Equipment

- Electrical Training Equipment-Device Overview

● The device is equipped with three-phase adjustable AC power supply,DC adjustable power supply,single-phase transformers,three-phase transformer,DC measuring instruments,AC measurement instruments,and it also equipped with adjustable resistive load and motor units,it mainly complete test and data analysis of single-phase transformer,three-phase transformer, three-phase asynchronous motor and compound excitation DC motor etc.

Electrical Training Equipment Technical Parameter

● Electrical Training Equipment Total dimension: 1950×700×1500mm

●Electrical Training Equipment Input power: three-phase, five-wire 380V±10% 50Hz/60Hz

● Electrical Training Equipment Output power:

AC 380V Adjustable power safety terminal output

AC 220V Safety terminal isolation output

AC 24V Safety terminal isolation output

DC 220V Safety terminal isolation output

● Electrical Training Equipment Capacity: < 1.5KVA
