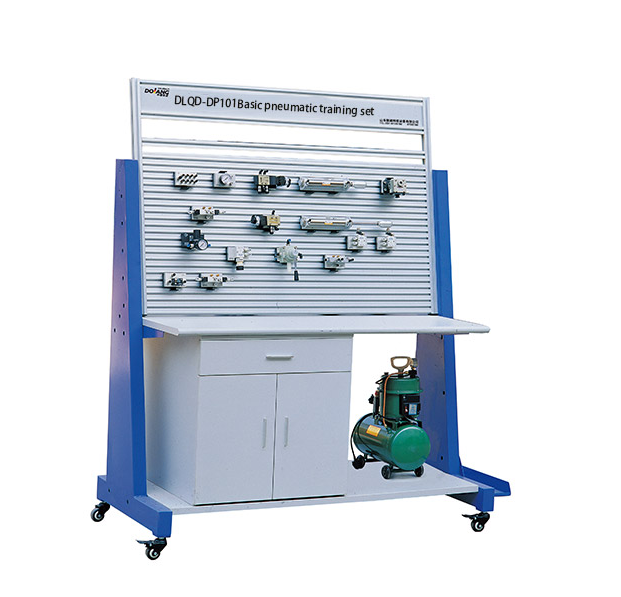

DOLANG DLQD-DP101 Basic Pneumatic Training Set

Pneumatic Components

Air compressor, air filter, pressure reducing valve, lubricator, manual reversing valve, solenoid directional valve, gas control valve, check valve, throttle valve, quick exhaust valve, OR gate shuttle valve, single-acting cylinder, double-acting cylinder

■ Technical Parameter

● Power unit - air compressor (Basic configuration minicomputers)

● Power source: AC 220V±10% 50Hz/60Hz

● Motor power: 480W

● Nominal volume: 6L Rated output pressure 0.85MPa

● Noise grade: 66dB

● Workbench

Workbench size: 1360 X 650 X 1650mm

Aluminum panel size: 1200 (L) X 600 (W)

■ Optional

● Teaching resources

● Pneumatic simulation software

● Valve terminal

● Step controlle
