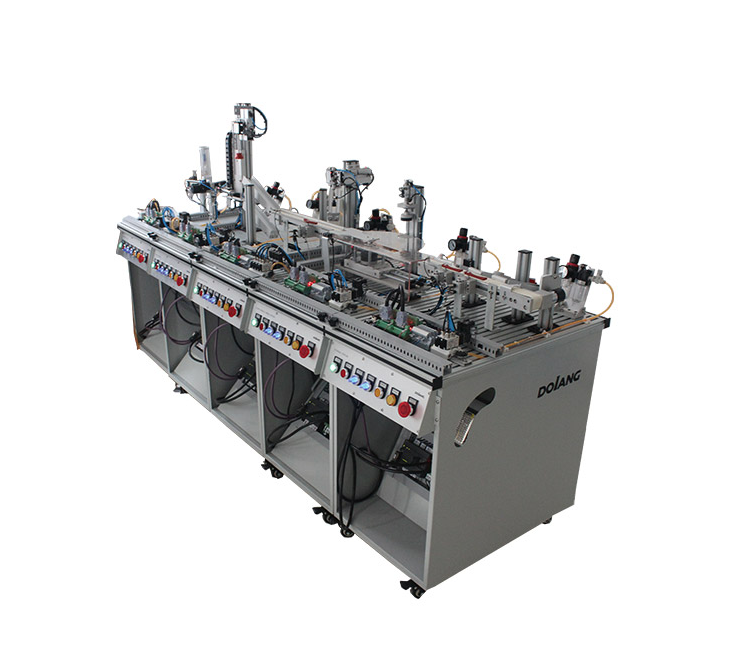

DOLANG DLMPS-205 Modular Flexible Production System

● Total dimension: 2450×790×2400mm

● Input power: single-phase, three-wire AC 220V±10% 50Hz/60HZ

● Output power: AC 220V safety socket

● Capacity: < 2KVA

● Distribution unit, Testing unit, Handling unit, Pressing unit, Sorting unit

■ Optional

● Computer, computer table

● PLC module

● Air compressor

Datasheet

● The system consists of distribution unit, testing unit, handling unit, pressing unit, sorting units. Each station of this system is installed on groove aluminum plates. Each station can be connected to be an automatic product line.

● All stations are composed of modular form. Each station is easy to set up, disassemble and maintenance. Each station can be combined freely.
