Input power: three-phase five-wire AC380V ± 10% 50Hz
Working environment: -10 ℃ - 45 ℃, relative humidity <90% RH (25 ℃), altitude <4000M
Device capacity: <1.5KVA
Output power: three-phase AC380V ± 10% 50Hz, single-phase AC220V ± 10% 50Hz DC24V (2 way)
The grid voltage indication is equipped with 450V pointer AC voltmeter 3.

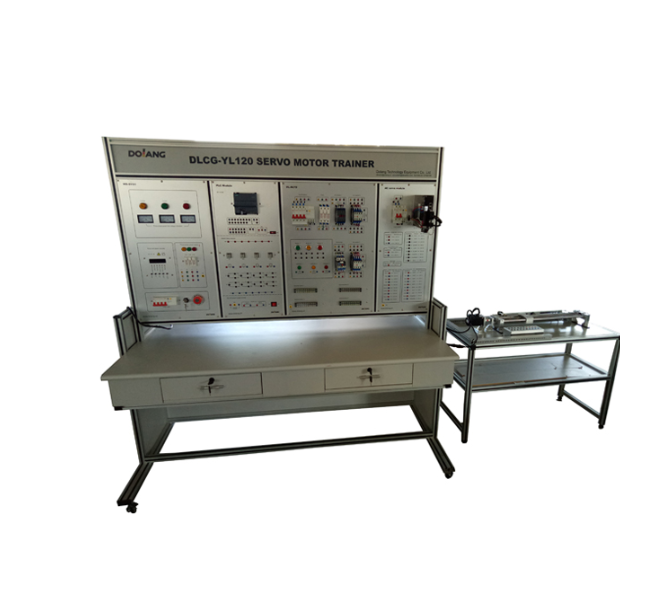

The overall length of the equipment: 2735mm, where:
Training platform length: length × width × height: 1700 × 700 × 1750mm
Ball screw small table: length × width × height: 1035 × 430 × 791mm
PLC (1214C DC / DC / DC) Parameters:
Input power: DC24V
Type: Thyristor output type
Training contents of AC servo motor training system
Training 1.Installation of software
Training 2.AC servo JOG operation(electrical parameter detection)
Training 3.Servo motor location control experiment
Training 4 Speed control experiment
Training 5.Servo wiring and parameter tuning training
Training 6.Sensor Cognitive experiment etc.
