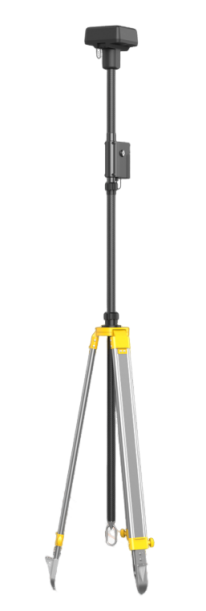

DJI D-RTK2 Surveying Base Positioning Equipment

GNSS Frequency

Simultaneously receive：

GPS: L1 C/A, L2, L5

BEIDOU: B1, B2, B3

GLONASS: F1, F2

Galileo: E1, E5A, E5B

Positioning Accuracy

Single Point

Horizontal：1.5 m(RMS)

Vertical：3.0 m(RMS)

RTK

Horizontal：1 cm+ 1 ppm(RMS)

Vertical：2 cm+ 1 ppm(RMS)

1 ppm: For every 1 km increase in distance,

the accuracy will be 1 mm less. For example,

the horizontal accuracy is 1.1 cm when the

receiving end is 1 km away from the base

station.

Positioning Update Rate: 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz

Cold Start: ＜45 s

Hot Start: ＜10 s

Recapture Time: ＜1 s

Initialization Reliability: ＞99.9%

Differential Data Format: RTCM 2.X/3.X

IMU

Features

Built-in high-precision 6-axis accelerometer

D-RTK 2 movement monitoring

Sloping measurements

Electronic bubble level

PHYSICAL CHARACTERISTICS

Dimensions(D-RTK 2 body with extension rod): 168 mm×168 mm×1708mm

IP Rating: IP65

ELECTRICAL  CHARACTERISTICS

Power Consumption: 12 W

Power Supply: 16.5 to 58.8VDC

Battery

Type：Lithium-ion battery

Capacity: 4920 mAh

Energy: 37.3 WH

Run Time

WB37 battery：＞2 h

MG-12000P battery：＞50 h

OPERATING TEMPERATURE

Operating Temperature: 4° to 131° F (-20° to 55° C)
