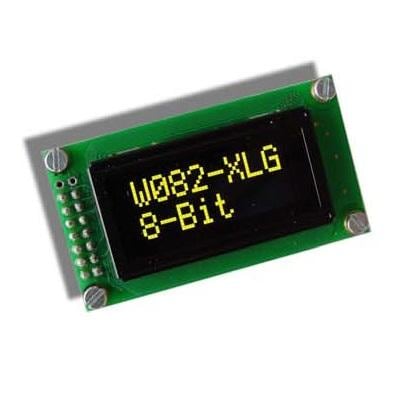

DISPLAY VISIONS EA W082-XLG OLED Displays Yel/Grn 2x8 5.5mm 38x16mm viewing area

Width: 58 mm

Height: 32 mm

Thickness: 10 mm

Unit Weight: 14 g

Display Type: OLED Display

Interface Type: 3-Wire

Illumination Color: Yellow

Pixel Size - W x H: 0.56 mm x 0.66 mm

Viewing Area - W x H: 38 mm x 16 mm

Character Count x Line: 8 x 2

Module Size - W x H x T: 58 mm x 32 mm x 10 mm

Operating Supply Current: 15 mA to 50 mA

Operating Supply Voltage: 3.3 V to 5 V

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C
