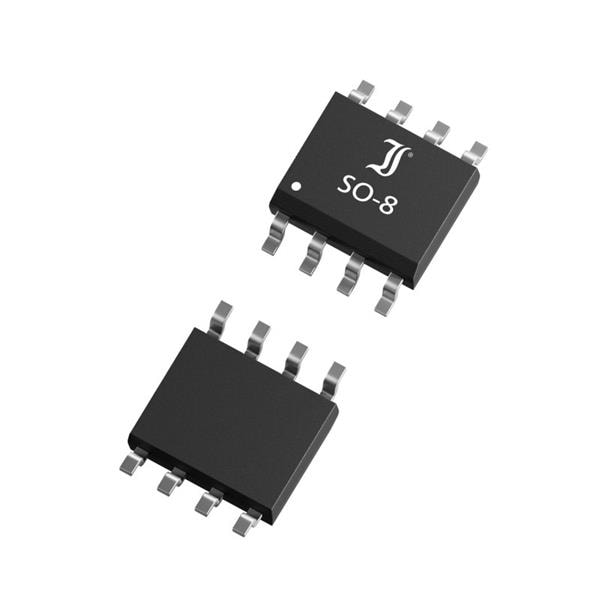

Diotec Semiconductor DI79L08DAB LDO Voltage Regulators VR, SO-8, -23V, -7.7V, -8.3V
Manufacturer: Diotec Semiconductor Model: DI79L08DAB - Contact
Polarity: Negative
Tolerance: 5 %
Output Type: Fixed
Unit Weight: 115 mg
Mounting Style: SMD/SMT
Output Current: 100 mA
Output Voltage: - 8 V
Dropout Voltage: 1.7 V
Line Regulation: 175 mV
Load Regulation: 80 mV
Number of Outputs: 1 Output
Quiescent Current: 6.5 mA
Moisture Sensitive: Yes
Input Voltage - Max: - 23 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
PSRR / Ripple Rejection - Typ: 46 dB
