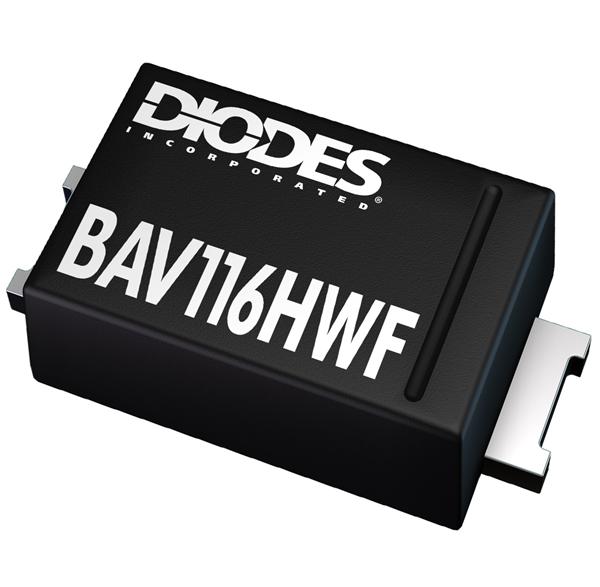

Diodes Incorporated BAV116HWF-7 Low Leakage Diode 85Vr Low Leakage 5nA Ir 3us Switching

Width: 1.9 mm

Height: 1.15 mm

Length: 2.8 mm

Unit Weight: 10 mg

Configuration: Single

Recovery Time: 3 us

Mounting Style: SMD/SMT

Max Surge Current: 500 mA

Termination Style: SMD/SMT

If - Forward Current: 215 mA

Ir - Reverse Current: 5 nA

Peak Reverse Voltage: 85 V

Vf - Forward Voltage: 1.25 V

Vr - Reverse Voltage: 85 V

Pd - Power Dissipation: 375 mW

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 65 C
