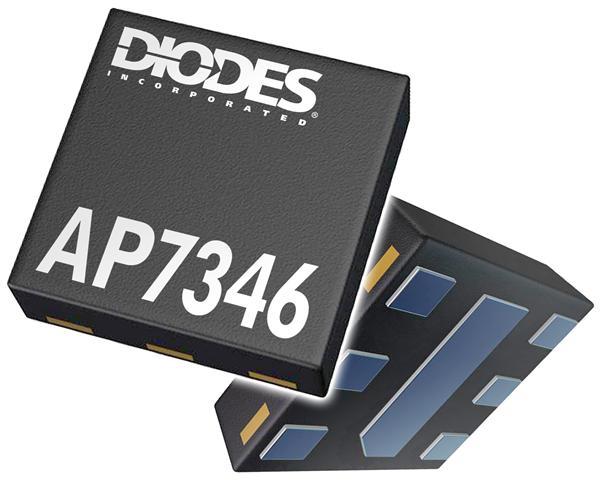

Diodes Incorporated AP7346D-1218FS6-7 CMOS LDO Regulator Dual High Acc LDO 157mA 1.2 to 1.8V

Width: 1.25 mm

Height: 0.4 mm

Length: 1.25 mm

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 130 mA

Output Voltage: 1.2 V, 1.8 V

Dropout Voltage: 300 mV

Line Regulation: 0.02 %/V

Load Regulation: 15 mV

Number of Outputs: 2 Output

Quiescent Current: 70 uA

Input Voltage - Max: 5.25 V

Input Voltage - Min: 1.7 V

Dropout Voltage - Max: 390 mV

Pd - Power Dissipation: 600 mW

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 75 dB
