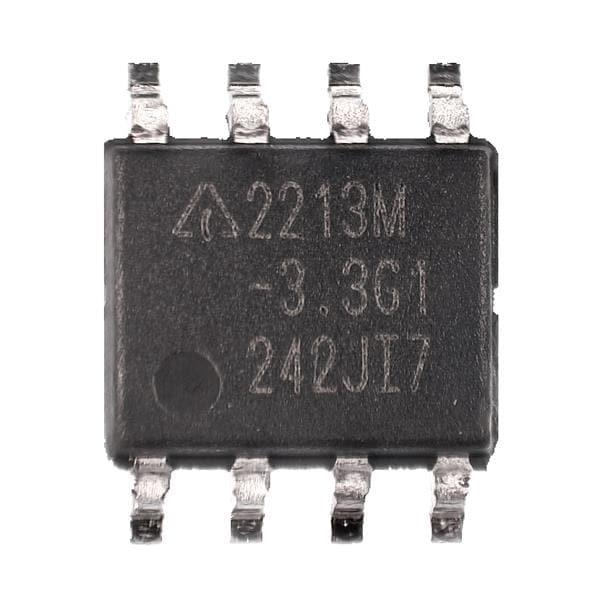

Diodes Incorporated AP2213M-3.3TRG1 Low Noise LDO Regulator 500mA Low Noise LDO 350mV 75dB 100Hz

Polarity: Positive

Output Type: Fixed

Unit Weight: 1.050 g

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 3.3 V

Dropout Voltage: 350 mV

Line Regulation: 1.5 mV

Load Regulation: 1 mV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 18 V

Input Voltage - Min: 2.5 V

Dropout Voltage - Max: 700 mV

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 75 dB
