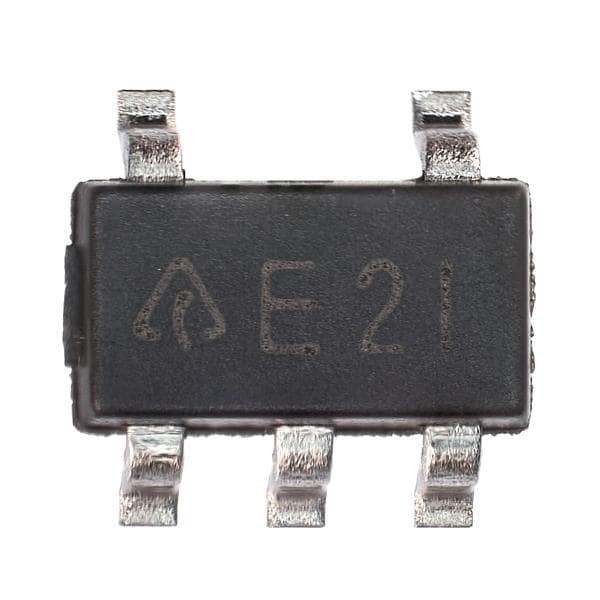

Diodes Incorporated AP2202K-3.0TRE1 ULDO Regulator LDO CMOS LowCurr

Polarity: Positive

Output Type: Fixed

Unit Weight: 15 mg

Mounting Style: SMD/SMT

Output Current: 150 mA

Output Voltage: 3 V

Dropout Voltage: 165 mV

Line Regulation: 1 mV

Load Regulation: 1 mV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 13.2 V

Input Voltage - Min: 2.5 V

Dropout Voltage - Max: 350 mV

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 75 dB
