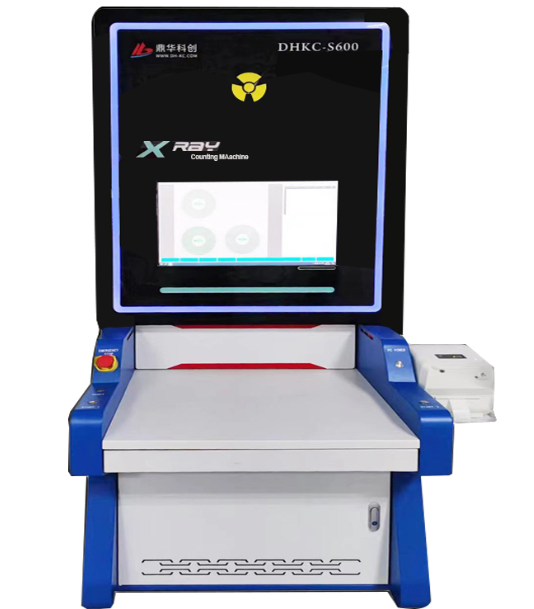

DINGHUA TECHNOLOGY DHKC-S600 Xray counting machine (30um, 50kV)

X-ray Light tube type: Closed type

Spatial division ratio: 30um

Light tube voltage: 50kv（actual 80kv,limited 50KV）

Light tube current: 1000uA

Point material speed: 6~9 S /time（Chip 01002, including labels printed）

Accuracy rate: 99.99%（0201 for instance）

Maximum diameter of the available material plate: 415mm（2-17 inches）

Inspectable maximum material plate height: 1-80mm

imaging precision: 85um

Imaging size: 430*430mm

resolution rate: 3072*3072px

Machine size（L*W*H): 1040*1480*2030mm

machine weight: 500kg

operating system: Windows 10

Power-supply/Rated power: AC110-220V50-60HZ 1200W

Radiation safety test: <1 uSV/H

Datasheet
