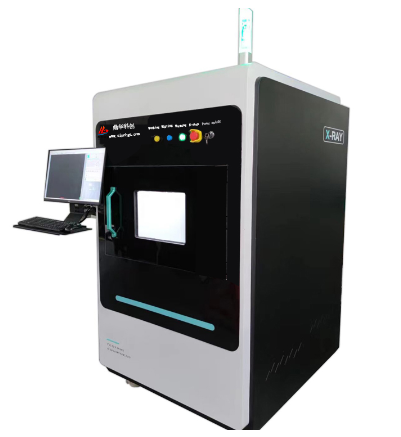

DINGHUA TECHNOLOGY DH-X9200 X-Ray inspection equipment oversized (5um, 130kV)
X-ray Light tube type: closed type
Spatial division ratio: 5um
Light tube voltage: 130KV
Light tube current: 800uA
Magnification: Geometric amplification 400x, system amplification 1500x
Digital Flat Panel Detector Resolution: 1536*1536x
Digital Flat Panel Detector Density Values: 14bit (16348)
Image speed: 20FPS
Plate rotation angle: 60°
Platform loading size: 1200*710mm
X-Y distance of run: 1250*1000mm
Scope of test: 1200*680mm
Machine size: 1400*1670*1920mm (L*W*H)
Weight: 1850kg
Operation system: WINDOWS 10
Power supply / Rated power: AC110-220V50-60HZ 1200W
Radiation Safety Testing: <1 uSV/H
