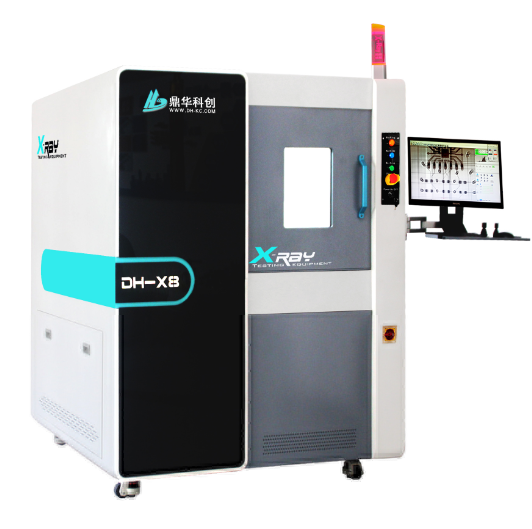

DINGHUA TECHNOLOGY DH-X8 Xray PCBa inspection machine (5um, 90kV)

X-ray Light tube type: Closed type

Spatial resolution: 5um

Light tube voltage: 90KV（optional 100、130KV）

Light tube current: 200uA

Magnification: Geometry magnification 200x, system magnification 1000x

Digital Flat Panel Detector Resolution: 1536*1536

Digital Flat Panel Detector Density Values: 16bit

Image speed: 30(FPS)

Plate rotation angle: 60°~120°

Platform loading size: 510*510mm

Radiation Safety Tested: <1 uSV/H

Power-supply/ Rated power: AC110-220V50-60HZ 1700W

Machine size: 1500 ×1500 ×2100mm (L*W*H)

Machine weight: 1500kg

Operating system: WINDOWS 10
