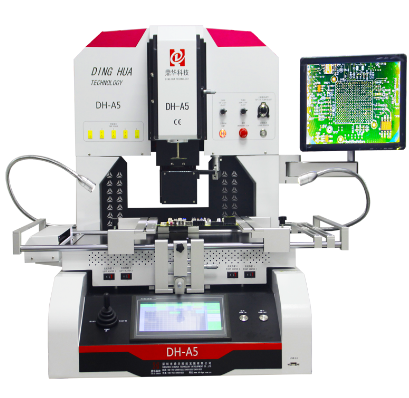

DINGHUA TECHNOLOGY DH-A5 Fully automatic BGA rework machine (6200W, 1x1~80x80mm)

Rated power: 6200W

Upper power: 1200W

Bottom power: The 2nd heating: 1200W, 3rd heating: 3600W

Power supply: AC 110~250V 50/60Hz

Mounting accuracy: ±0.01mm

PCB fixed: V-groove, bracket moved at X/Y, and with fixtures

Temperatrue controlling: Cloosed loop, PID and K-type sensor

PCB size: Max 570*640mm, Min 10*10mm

Platform fine-tune: Front/Back:+/-15mm, left/right::+/-15mm

Temperatrue accuracy: +/-1 °C

Zoom in: 1~100 times

Chip size: 1*1~80*80mm

Min Space: 0.1mm

External temperatrues‘ ports: 5 pcs(optional)

Dimension: 650*700*850mm

Net weight: 92kg
