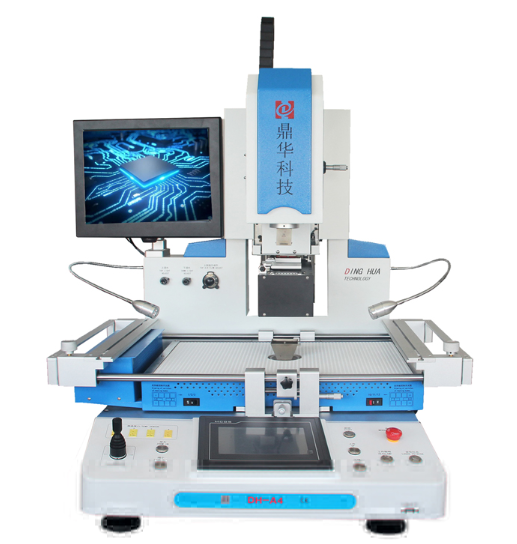

DINGHUA TECHNOLOGY DH-A4 Fully automatic BGA rework machine (6800W, 1x1~80x80mm)

Power supply: 220V+/-10% 50/60Hz

Rated power: 6800W

Upper power: 1200W

Lower power: the 2nd: 1200W; the 3rd: 4200W

Position: V-groove, PCB bracket at X/Y axises movement, with universal fixtures

Temperature control: K-type, closed-loop, PID

Temperature accuracy: +/- 2 degrees

PCBa size: Max 550*530mm, Min 10*10mm

Workbench: Front/back/left/right +/- 15mm

Zoom in/out: 10~200X

Chips available: 1*1~80*80mm

Space: 0.15mm

Temperatures ports: 1~5 (optional)

Mounting accuracy: +/-0.01mm

Net weight: 97kg

Dimension: L1022*W670*H850mm
