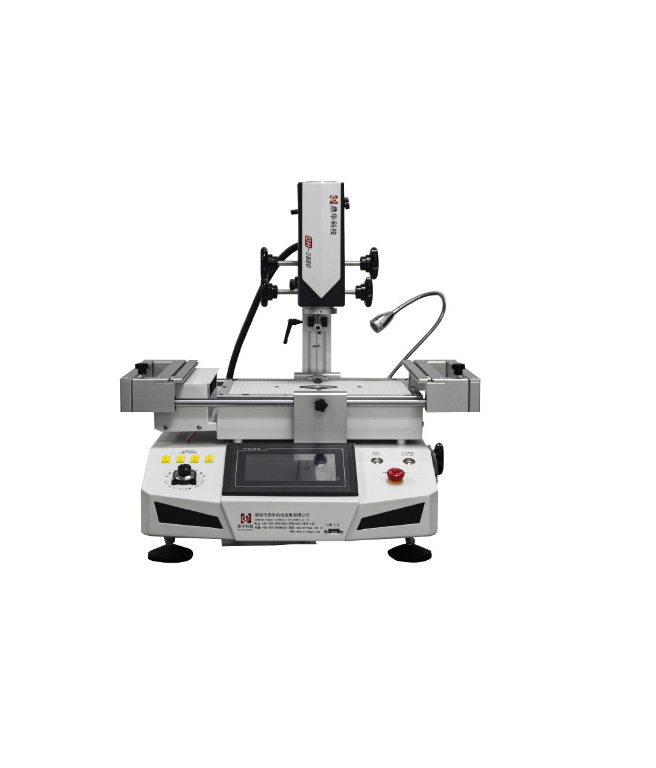

Dinghua DH-5880 BGA Rework Station

Power: 5200W

Heating power (upper): 1200W

Heating power (lower): Second temperature zone: 1200W, third temperature zone: 2700W

Power supply: AC220V±10% 50Hz

Positioning: Laser positioning, V-shaped card slot, and external multifunctional clamp

Temperature control: K-type thermocouple (K Sensor) with closed-loop control

Temperature control accuracy: ±2°C

PCB size: Maximum 420 × 370 mm, minimum 10 × 10 mm

Applicable chip: BGA chip 2X2-80X80mm

Minimum chip distance: 0.15mm

External temperature sensor: Expandable (optional)

Machine weight: 48kg
