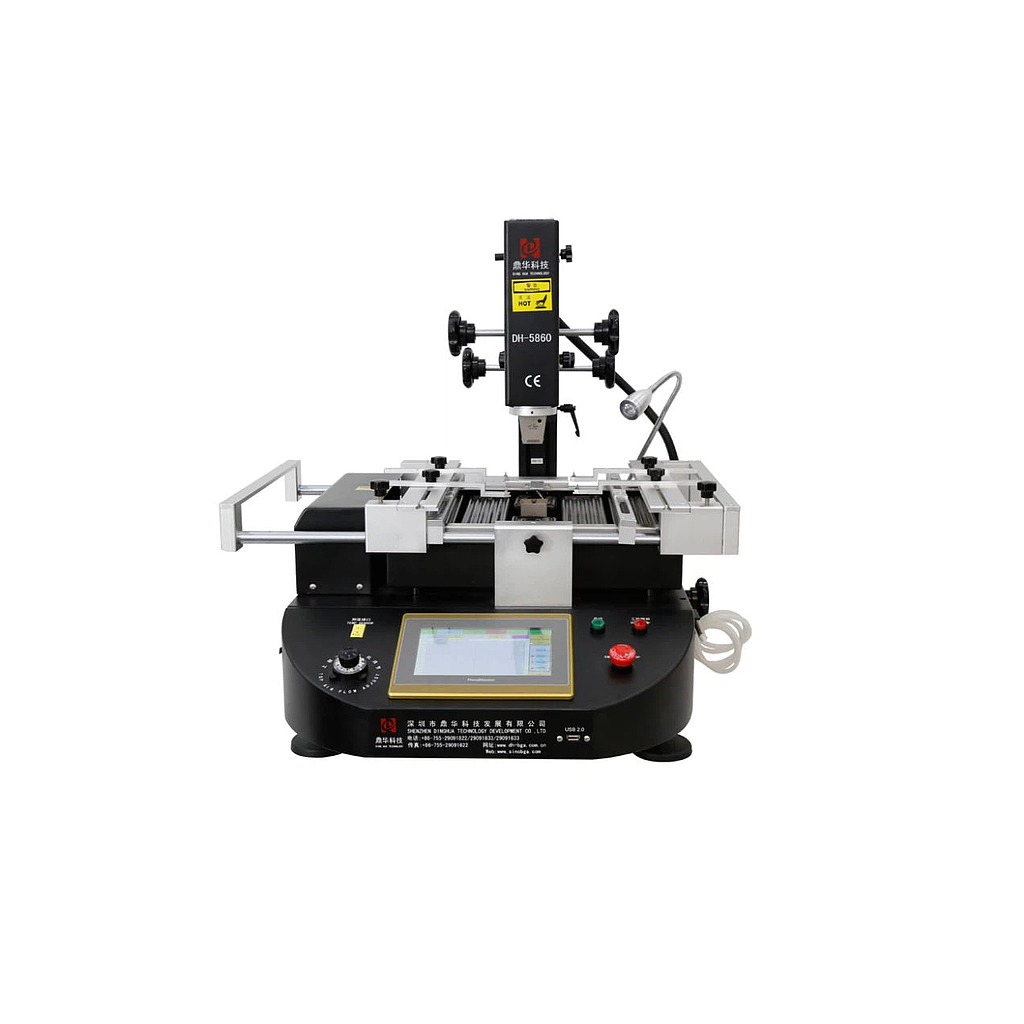

Dinghua DH-5860 BGA Rework Station

Total Power: 4800W

Top heater: 800W

Bottom heater: 2nd 1200W, 3rd IR heater 2700W

Power: AC220V±10％ 50Hz

Lighting: Taiwan led working light, any angle adjusted.

Operation mode: Drawer style HD touch screen, intelligent conversational interface, digital system setting

Storage: 50000 groups

Top head movement: Right/left, frontward/backward, rotate freely.

Top hot air speed: Can be adjusted with adjusting knob

Positioning: Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.

Temperature control: K sensor, close loop

Temp accuracy: ±2℃

PCB size: Max 420×400 mm Min 22×22 mm

BGA chip: 2x2 - 80x80 mm

Minimum chip spacing: 0.15mm

External temper sensor: 1pc

Dimensions: 640*630*590mm

Net weight: 38KG
