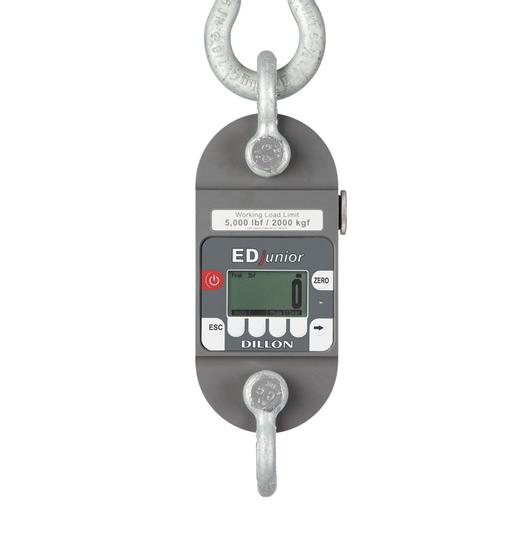

DILLON EDjr-2T Dynamometer (2,000kgf)

-Enclosure: Designed to NEMA4X/IP55

Suitable for continuous outdoor use

-Accuracy: 0.2% of capacity

-Repeatability: 0.2% of capacity

-Proof Load: 150% of capacity

-Ultimate Overload: See table on reverse

-Safe Overload: 200%

-Display: 128 x 64 dot-graphic LCD display shows all digits
1.0” (26 mm) high plus annunciators and softkeys

-Display Update Rate: 2 times per second

-Peak Hold Sampling Rate: 10 times per second typical

-RS-232 Communication: Not available.
See Dillon EDXtreme.

-Calibration: Traceable to the National Institute of

Standards and Technology. Calibration card included.

-Battery Life: 425 hours typical use with two

C-cell alkaline batteries

-Backlight: Configurable. Using backlight will consume
more battery power, reducing battery life.

-Operating Temperature: -4° F to 158° F (-20° to 70° C)

-Included with Instrument:

Carry case, batteries, manual and calibration card

-Warranty: 2 years parts and labor

-Overload: Recorded at 120% with date and time stamp
