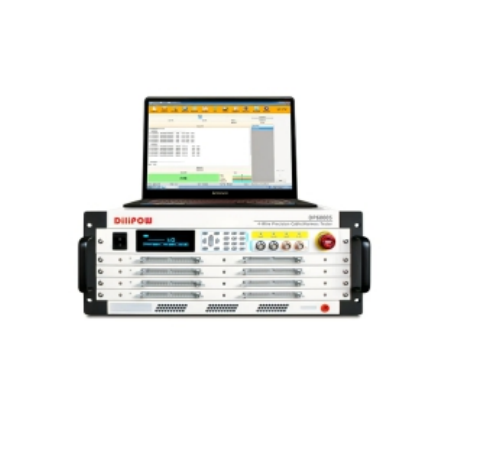

Dilipow DP5000S Low Voltage Cable Harness Tester (512)

Measuring Mode: Inner four-wire + outer four-wire

Maximum number of test points: 512

AC Output Voltage: 50-1000V DC

DC Output Voltage: 0-1500V DC

High Voltage Output Accuracy: ±3%

High Voltage Measurement Accuracy: ±3%

High Voltage Measurement Time: 0.02s - 60s, user delay not included

Low Voltage Measurement Time: 0.02s - 60s, user delay not included

O/S Measurement Time: 500μS (1024 points, user delay not included)

Test Items and Range

O/S,IntermienceO/S,QuickIntermience OpenCircuit: 2kΩ-100 kΩ

Inner Four-wire Test Conductance: 0.1Ω-1MΩ

Outer Four-wire Conductance Test: Measurement Range: 1μΩ-100Ω; Current Signal: ≤1A

AC Hipot Leakage Current: 0.01mA-10mA

DC Hipot Leakage Current: 0.1μA-5mA

DC Hipot Insulaon Resistance: 1MΩ-5GΩ

DC Resistance:

+ MeasurementRange: 100mΩ-20MΩ

+ Level Signal: 0-5V

+ Current Signal: ≤10mA

LCR:

+ CapacitancesMeasurementRange: 10pF-100mF

+ ResistanceMeasurementRange: 100mΩ-20MΩ

+ Inductance Measurement Range: 10nH~100H

+ Frequency Signal: 50Hz/60Hz/100Hz/120Hz/1kHz/10kHz/50kHz

+ RangeMode: AUTO/HOLD

+ Level Signal: 0.1/0.3V/1V

Diode/Zener diodes:

+ Test Range: 0-100V

+ Test Signal: 1mA/100V

Single-Side Test: Yes

O/S Terminal Judge: Yes

Advanced Funcons: Programmable connuous test/ Automac point search/ Auto-diagnosis

Test Scan Mode: Automac/manual/external

Measurement Signal: low voltage measurement signal

Storage Memory: Number of test files up to 500 sets

OS Voltage: 5V

Panel: System/ Rapid/ Edit/ Funcon

Indicator: Pass/ Fail HV LED red-green indicator lights/ Screen Display/ Sound

Dimension (W*H*D): 483*265*510 mm

Weight: 25 kg
