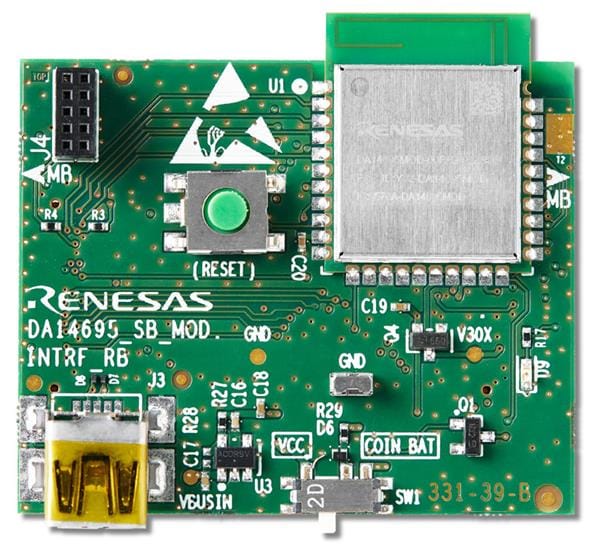

Dialog Semiconductor DA14695MOD-00F32002 Bluetooth Modules Multi-core wireless Module for Bluetooth 5.2 and prop 2G4 protocolswith integrated ARM Cortex M33, memories and peripherals

Core: ARM Cortex M33

Antenna: PCB

Frequency: 2.4 GHz

Output Power: 6 dBm

Interface Type: I2C, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 4.75 V

Supply Voltage - Min: 2.4 V

Operating Supply Voltage: 2.4 V to 4.75 V

Supply Current Receiving: 1.8 mA

Supply Current Transmitting: 3 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
