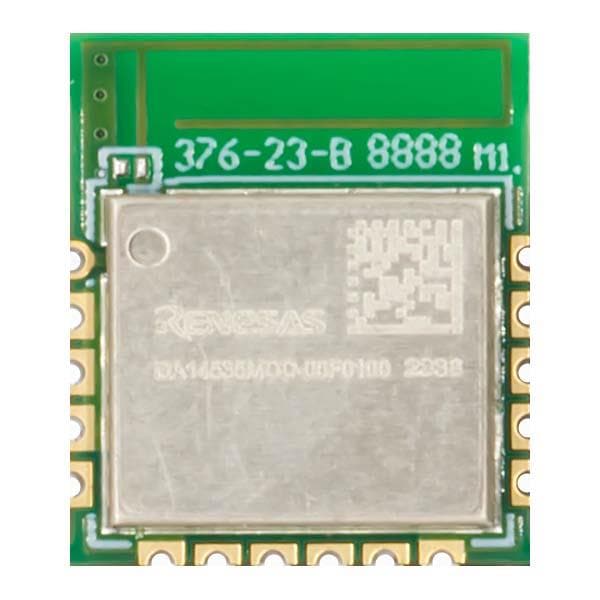

Dialog Semiconductor DA14535MOD-00F01002 Bluetooth Modules Bluetooth Low Energy 5.3 Module with integrated ARM Cortex M0+, memories and peripherals

Core: ARM Cortex M0+

Width: 14.5 mm

Height: 2.8 mm

Length: 12.5 mm

Dimensions: 12.5 mm x 14.5 mm x 2.8 mm

Memory Size: 1 Mbit

Output Power: 3 dBm

Interface Type: 1-Wire, I2C, SPI, UART

Mounting Style: SMD/SMT

Receiver Sensitivity: - 92.5 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 2.7 mA

Supply Current Transmitting: 2.6 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
