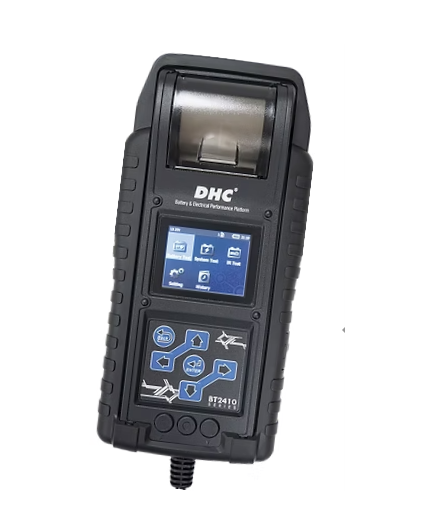

DHC BT2410 Battery and Electrical System Tester (25 ~ 3,000 CCA(SAE))

Application:

12V start-stop battery tests

12V and 24V cranking/charging system tests

Internal resistance tests

Supported Battery Types: Flooded, AGM Flat, AGM Spiral, EFB, VRLA/GEL

Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA

Operating Range: 25 to 3,000 CCA(SAE)

Voltage Range: 1V to 32V

Sensor Array: –

Wireless Connection: –

Wired Connection: USB Type-

Firmware Update: Yes (via PC Software)

Cloud Data Management: –

PC Software: Yes

Test Code and Test Counter: Yes (supports recall & print of test results from the last 7 days)

Printer: 2-inch thermal printer

Display: Coloured TFT-LCD (240×320)

Input Device: 6-key keypad (up, down, left, right, enter, back)

Clamp-Cable Set Length: 1.8 metres (approx. 5.9 feet)

Detachable Cable: Yes

Internal Battery Support:

AA Alkaline/NiMH batteries

18650 Li-ion batteries

Voltage Probe: –

Amp Clamp: –

Dimensions (L × W × H): 285 × 140 × 75 m(approx. 11.2 × 5.5 × 3 inches)

The BT2410 is a fast, accurate, and easy-to-use battery and electrical system tester. Based on the DHC Performance Platform, it offers better accuracy, user experience, and flexibility.

Features:

Battery, Cranking, and Charging System Tester

6V, 12V, and 12V Start-Stop Battery Test

12V & 24V Cranking/Charging System Test

6V/12V Internal Resistance Test

TFT-LCD Display with Intuitive Graphical User Interface

USB Type-A wired Connection

Supports DHC Result Management Software

Update Firmware In-Field via PC Software

Flexible Integrated Battery Type: AA or 18650 Li-Ion

Built-in 2” Thermal Printer

Detachable/Replaceable 5.9’ Cable

Built-in Clamp and Cable Diagnostic Capability

Strong and Durable Heavy-Duty Case Design

Recall and Print Last 7 Days Test Results

User Manual
