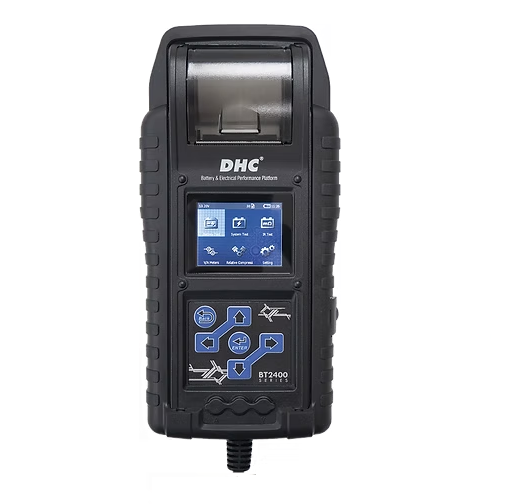

DHC BT2400HD Battery and Electrical System Tester (25 ~ 3,000 CCA(SAE))

Application:

6V battery tests

12V battery tests (single, parallel pack, and serial pack)

12V start-stop battery tests (single, parallel pack, and serial pack)

12V and 24V cranking/charging system tests

Internal resistance tests

Supported Battery Types: Flooded, AGM Flat, AGM Spiral, EFB, VRLA/GEL

Supported Battery Ratings: CCA/SAE, EN, EN2, IEC, JIS, DIN, CA/MCA

Operating Range: 25 to 3,000 CCA(SAE) (single battery)

Voltage Range: 1V to 32V

Sensor Array: Temperature Sensor

Wireless Connection: –

Wired Connection: USB Type-A

Firmware Update: Yes (via PC Software)

Cloud Data Management: –

PC Software: Yes

Test Code and Test Counter: Yes (supports recall and print test results of the last 7 days)

Printer: 2-inch thermal printer

Display: Coloured TFT-LCD (240×320)

Input Device: 6-key keypad (up, down, left, right, enter, back)

Clamp-Cable Set Length: 4.5 metres (approx. 14.7 feet)

Detachable Cable: Yes

Internal Battery Support:

AA Alkaline/NiMH batteries

18650 Li-ion batteries

Voltage Probe: Supported (sold separately)

Amp Clamp: Supported (sold separately)

Dimensions (L × W × H): 285 × 140 × 75 mm (approx. 11.2 × 5.5 × 3 inches)

Operating Languages: English, French, Spanish, German, Italian, Portuguese, Polish, Dutch, Turkish (more languages possible)

The BT2400 HD is the ideal tester for trucks, lorries, and heavy vehicles. With 24V battery and battery pack support, it can test a wide range of battery configurations, which includes single 24V batteries, 12V parallel packs, and 12V serial (24V) packs. This battery testing ability is coupled with our time saving testing algorithms and procedure, so you can get battery condition report more quickly.

Features:

Battery, Cranking, and Charging System Tester

6V, 12V, 12V Start-Stop and 24V Battery Test

12V, 24V Battery Pack Tests (12V par. & 12V ser.)

12V & 24V Cranking/Charging System Test

6V/12V Internal Resistance Test

TFT-LCD Display with Intuitive Graphical User Interface

USB Type-A wired Connection

Supports DHC Result Management Software

Update Firmware In-Field via PC Software

Flexible Integrated Battery Type: AA or 18650 Li-Ion

Thermal Sensor for Battery Temperature Detection and Compensation.

Built-in 2” Thermal Printer

Detachable/Replaceable 14.7’ Cable

Built-in Clamp and Cable Diagnostic Capability

Strong and Durable Heavy-Duty Case Design

Recall and Print Last 7 Days Test Results

Optional Amp Clamp and Voltage Probe
