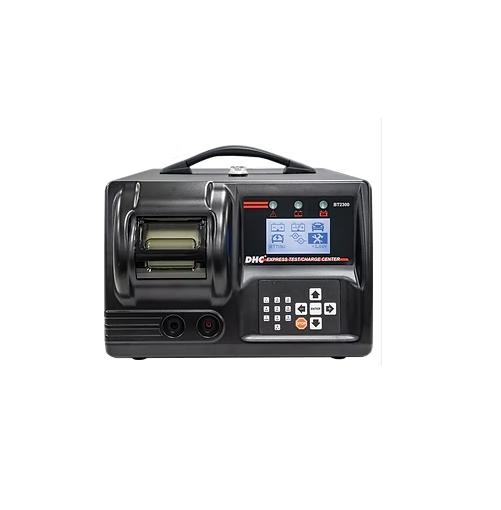

DHC BT2300PLUS Cloud-Ready Battery Service Station (100 - 1,500)

Operating Range: CCA: 100 - 1,500

Testing Application: 12V Flooded, AGM Flat/Spiral, EFB, VRLA, GEL, 12V/24V Cranking/Charging System

Charging Application: 12V Flooded, AGM Flat/Spiral, EFB, VRLA, GEL, Lithium (LFP), 50 Amps Maximum

Power Supply: 13.0-14.5V, 50 Amps Maximum (for ECU Flashing)

Voltage Range: 1V - 31.5V

Battery Types: 12V Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB

Battery Ratings: CCA/SAE, EN, JIS, DIN, IEC

The BT2300 PLUS is a cloud-ready battery service station. It not only performs real load test and uploads the test results to the cloud via WiFi automatically, but also 12V lead-acid, EFB, AGM, VRLA, LFP battery charge & power supply for ECU programming. Other than that, it features VIN scan, field upgrade, PC data link, and PDI (Pre-Delivery Inspection) charge with quick diagnostic.

Features:

Easy-to-Read Intuitive Interface

Complete Test Report & Customizable Printout

4 Color LCD: Different Colors for Different Results

Wi-Fi Transmission & Cloud Management

Field Upgrade via WiFi or USB Port

Power Supply for ECU Reflash

VIN Code Scan via USB Scanner or Enter Manually

“SET-N-GO” Automatic Testing/Charging Procedure

Battery Charge & Fast Diagnostic

Detects 80%+ Bad Batteries During Charge

Auto Charge, PDI Charge, & LFP Battery Charge

Precise Temperature Compensation

10-foot Heavy Duty Detachable Cable

Optional Voltage & Current Meter

User Manual:
