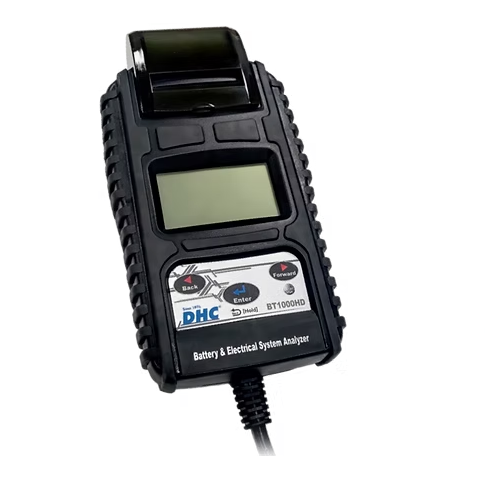

DHC BT1000HD Battery and Electrical System Tester (40 ~ 2,000 CCA(SAE))

Application:

24V pack test

6V & 12V battery test

12V START-STOP battery test

12V & 24V cranking/charging system test

IR test

LCD: 4-line & 4-color large LCD with adjustable brightness

Printer: 2" thermal printer

Supported Battery Types: Flooded, VRLA/GEL, AGM Flat, AGM Spiral, EFB

Battery Ratings: CCA/SAE, EN, JIS, DIN, IEC, CA/MCA

Operating Range: 40 ~ 2,000 CCA(SAE)

Voltage Range: 1V ~ 31.5V

Dimensions (mm): 250 (L) × 130 (W) × 45 (H)

Test Code / Test Counter: Yes

Detachable Cable: Yes

Languages: English, French, Spanish, German, Italian, Portuguese

The DHC BT1000HD is a professional battery & electrical system tester that features a 6/12V batteries / 24V pack test for emergency generators and provides complete test results within one single print out receipt.

Features:

Battery, Cranking, & Charging System Tester

24V Pack Test / 6V & 12V Battery Test

2V & 24V Cranking/Charging System Test / IR Test

4 Color LCD Screen Shows Different Colors for Various Test Results

Built-in 2 1/4” Thermal Printer Prints Test Result With Date for Records

Temperature Compensation for Above/Below 0ºC (32ºF)

Customizable Facility Information on the Printout Test Result

Detachable / Replaceable 10-foot Cable for Easy Replacement

Heavy Duty Casing with Strong and Durable Case Design

Test Code Decoder for Decoding and Saving Test Records

Print Last Result Ability to Directly Print Last Test Result Without Re-testing
