Direct access to our certified experts

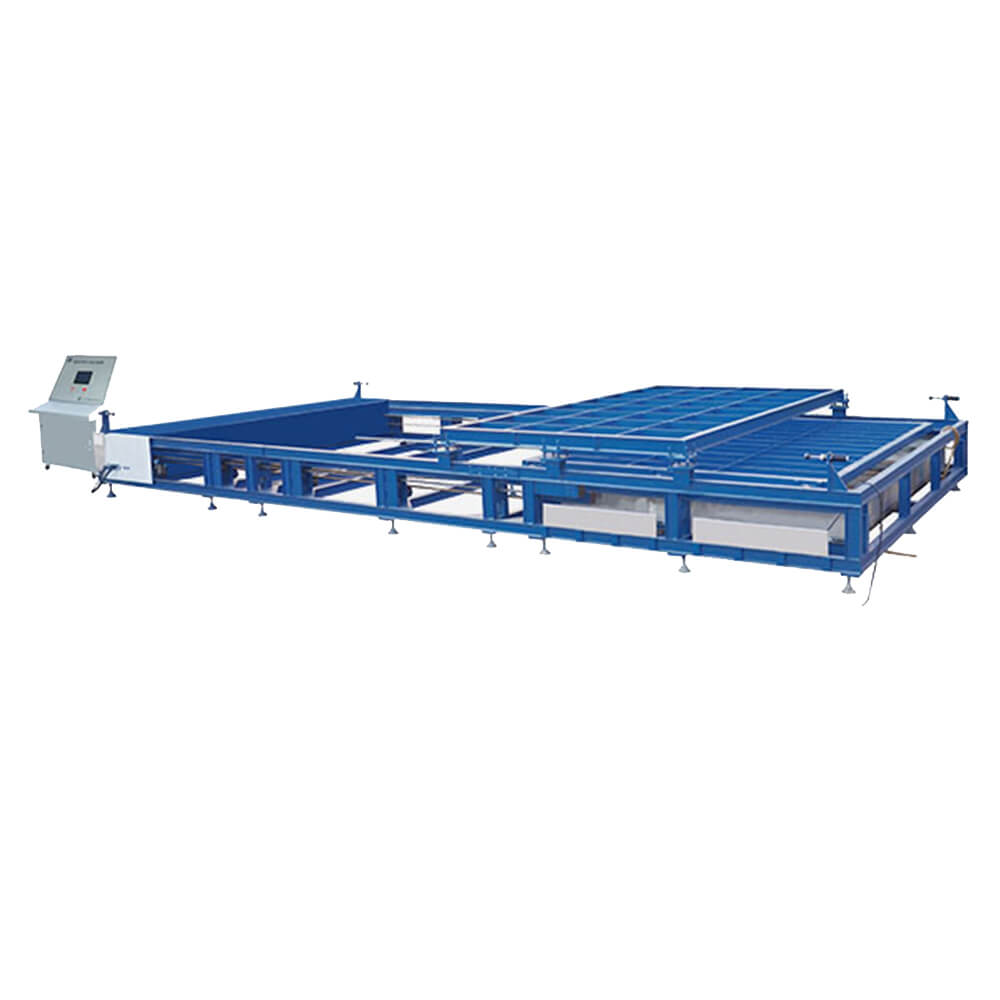

Test Space: W1500 X D2500 X H800mm
Equipment Dimension: W7500 X D3700 X H960mm
Movable Rack: W1500 X D3000 mm
Max. Load: 1000KG (2000KG,3000KG can be customized)
Object Holder Moving Speed: 6000mm/min (Adjustable)
Refractory Rack Moving Speed: 6000mm/min (Adjustable)
Control System: PLC touch screen close control + computer remote control
Ignition Mode: Automatic high pressure pack ignition
Distance Between Burning Plate and gasoline: The distance between the gasoline and the test object can be adjusted within the range of 450cm~550mm. The defaulted 500mm; the bottom of the gasoline plate is filled with water.
Refractory Brick Size: In accordance with the standard of ECER100, Refractory Brick Size 240mm*120mm*70mm.
Gasoline Plate Size: 3 gasoline plates-can be changed easily according to the test object size. the height of gasoline plate is no more than 80cm from the gasoline level
Power Supply: AC 380V,7.0KW
Weight : pprox 3.5 Tons
Other requirements:
The ignition area of gasoline plate can be adjusted according to requirements.
Automatic gasoline filling.
Remote control.
Electrical ignition according to test requirements.
The video monitoring system, lighting system.
