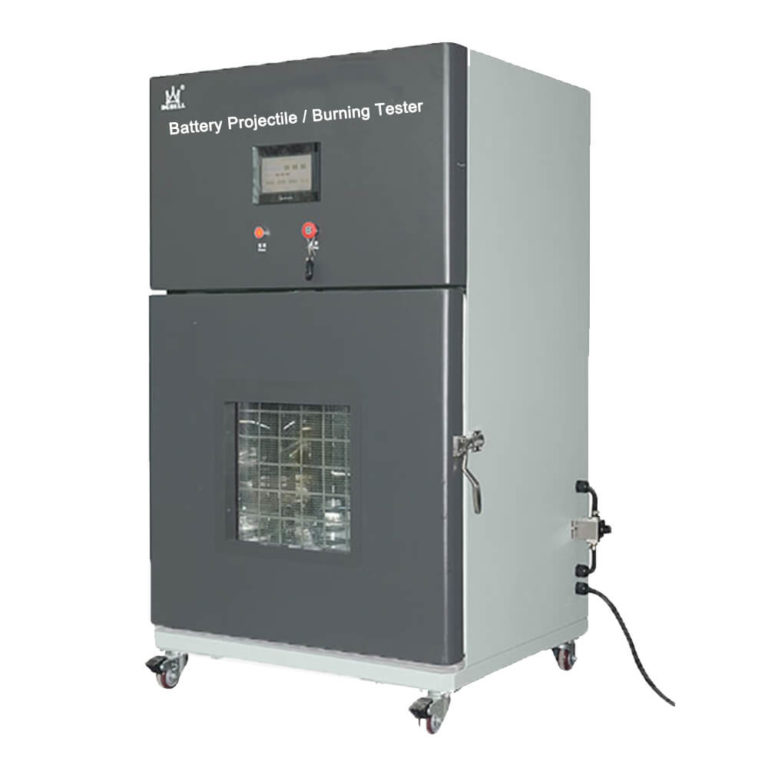

Structure: All-in-one structure, the door uses explosion-proof lock and explosion-proof chain
Burner: Bunsen burner with inner diameter of 0.375 inch (9.5mm) and length approx. 100mm
Flame Application Time: 99H 59M 59S
Flame Height: *10～75±2mm（Adjustable）
*Mesh should be placed approx. 38mm above the flame (GB31241-2014)
Test Rod Diameter: 1/4inch（6.35mm）× 14inch(355.6mm)
Octagon Shape Stainless Steel Mesh Enclosure
Distance between each parallel sides: 24 inches (610mm)
Height: 14 inches (305mm),
Angle iron : spec. 12.7mmX12.7mm
Mesh Top Cover: Square shape with length approx. 650mm
Test Aluminum Mesh Specification:0.010inch (0.25mm) 16 grit x16 grit
Test Round Hole Surface Diameter: 102mm
Ignition Device: Automatic ignition
Display Mode: PLC touch + Remote control
Observation window: 390x360mm (20mm thick explosion-proof glass, install explosion-proof stainless steel mesh)
Control Method: Remote control, automatic control through the entire test.
Combustion Gas Requirements: High purity liquefied petroleum gas. (Prepared by user)
Data Output: Test data can be output by USB flash disk directly .
Safety Protection: Explosion-proof pressure relief device, smoke exhaust device, fire extinguishing system, electronic door lock system, safety stop switch
Options: Temperature acquisition system, voltage acquisition system, video monitoring system
