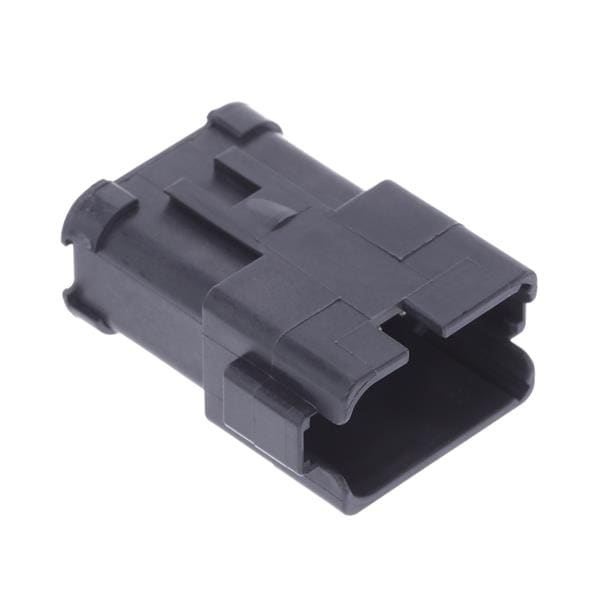

DEUTSCH - TE Connectivity DT04-12PB-P026 12-Way REC, 12P, BLK, BUSBAR 2X6, NICKEL, B

Color: Black

Pitch: 9.12 mm (0.359 in)

Width: 22.25 mm

Gender: Receptacle (Female)

Height: 22.25 mm

Length: 45.92 mm

Material: Plastic

Dimensions: 40.56 mm x 22.25 mm x 45.92 mm

Insulation: Insulated

Row Spacing: 4.45 mm

Unit Weight: 26 g

REACH - SVHC: Details

Mating Gender: Plug

Contact Gender: Pin (Male)

Current Rating: 13 A

Housing Gender: Receptacle (Female)

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 V

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Contact Plating: Nickel

Housing Material: Polyamide (PA)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP68, IP6K9K

Mating Part Number: DT06-12SB

Number of Positions: 12 Position

Attachment Hole Diameter: 1.5 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
