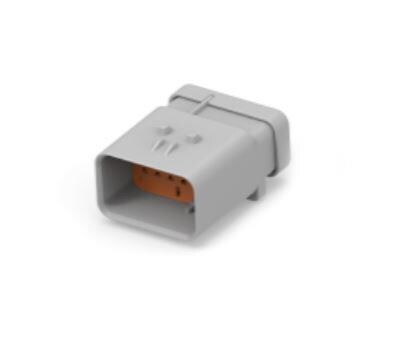

DEUTSCH - TE Connectivity 2320918-4 Housings AS16 HT, Cap, 12P, standard seal, CodeD

Color: Gray

Pitch: 4.5 mm (0.177 in)

Gender: Receptacle (Female)

Row Spacing: 5.3 mm

Contact Gender: Pin (Male)

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Voltage Rating: 250 VAC, 250 VDC

Wire Gauge Max: 14 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 14 AWG

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 12 Position

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C
