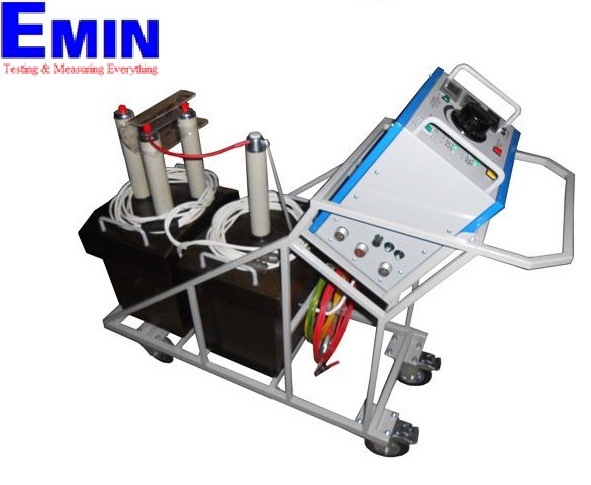

DTE VLF-60-AID Very Low Frequency Test Set (60kV, 0.02Hz)
ManufacturerDTE(View more products from this manufacturer)
ModelVLF-60-AID
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available

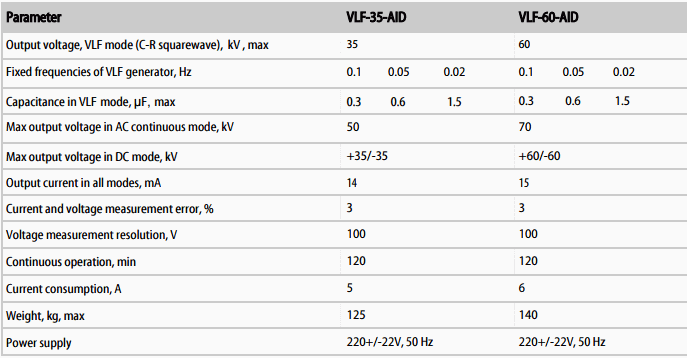

Output voltage, VLF mode (C-R squarewave): 60kV
Fixed frequencies of VLF generator: 0.1; 0.05; 0.02 (Hz)
Capacitance in VLF mode: 0.3; 0.6; 1.5 (uF)
Max output voltage in AC continuous mode: 70kV
Max output voltage in DC mode: +60/-60 kV
Output current in all modes: 15mA
Current and voltage measurement error: 3%
Voltage measurement resolution: 100V
Continuous operation: 120 min
Current consumption: 6A
Weight: 140kG
Power supply: 220+/-22V, 50/60 Hz
