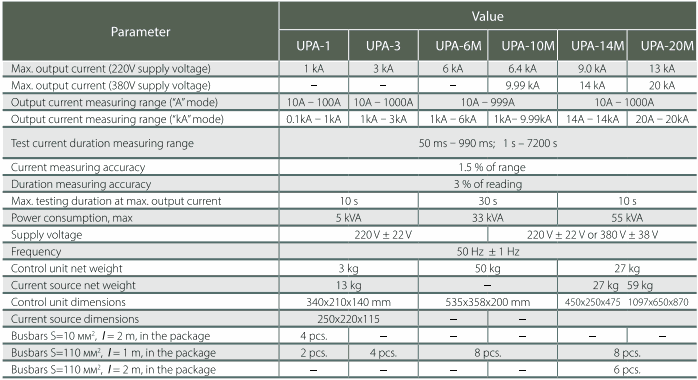

Max output current (220V supply): 1kA
Output current measuring range (Mode "A"): 10-100A
Output current measuring range (Mode "kA"): 0.1A-1kA
Test current duration measuring range: 500ms-990ms; 1s-7200s
Current measuring accuracy: 1.5% of range
Duration measuring accuracy: 3% of reading
Max testing duration at max output current: 10s
Power consumption: max 5kVA
Supply voltage: 220V+/-22V
Frequency: 50+/-1 Hz
Control unit net weight: 3kg
Current source net weight: 13kg
Control unit dimensions: 340x210x140 mm
Current source dimensions: 250x220x115 mm
