Display: TFT true color LCD display
Peak power: 1650W
Voltage: AC220V/50Hz, AC110V/60Hz
Main machine dimension: 280(L) × 197(W) × 140(H) mm
Machine weight: 2.7 kg
Soldering Iron
Model: S90D
Power consumption: 90W (S90D)
Temperature range: 80–500°C
Resistance between tip and ground: ≤2Ω
Tip to ground voltage: ≤2 mV
Tip model: S90D with TD series
Heating element: A1529 (S90D)
Output voltage: 24V
High temperature cuff: GT06 (S90D)
Cable length: 1.2 m
Handle weight: 100 g (S90D)
Smoke Purification Characteristics
Using high-speed turbine fan, low noise, high speed, stable operation, long life, low power consumption, high efficiency (zero maintenance and zero consumables).
Special alloy vortex metal fan design, fatigue-resistant, stable operation, low noise, large air volume, strong suction, high smoke extraction efficiency.
The smoke purification pipe can be adjusted in direction and position freely, easy to install, no additional piping required, keeping the workspace clean and tidy.
Effectively and quickly removes toxic gases generated during soldering, protecting user health. 360-degree adjustable angle, low noise, high performance. Easy and quick replacement of carbon filter. The carbon filter is made of special materials with strong adsorption capacity. The whole system uses anti-static conductive materials.
Suitable for electronics work, R&D departments, maintenance stations, especially in environments with poor air circulation.
Characteristics of the Equipment

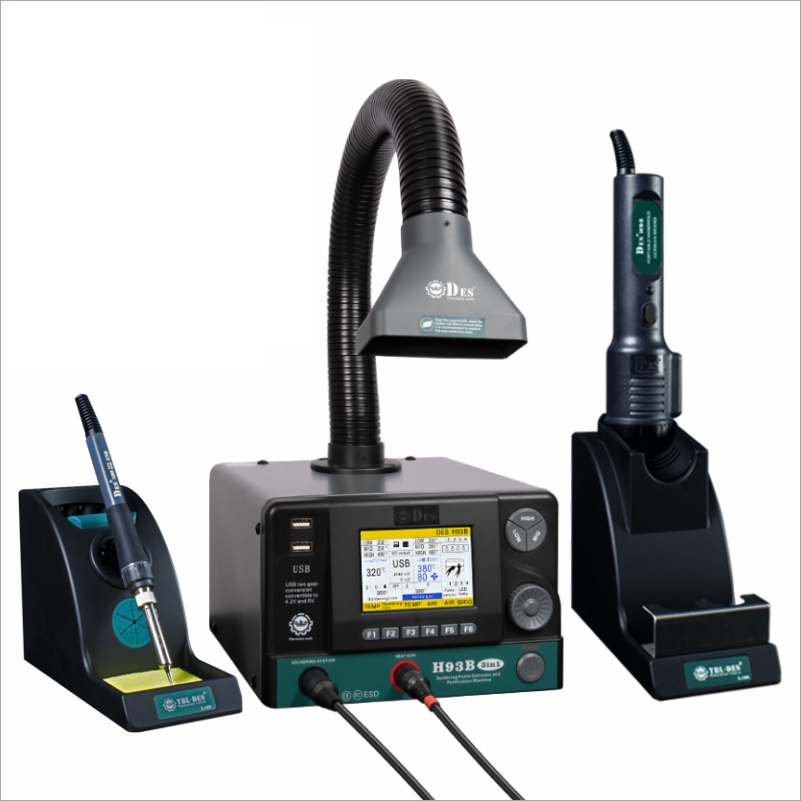

Three-in-one multifunctional maintenance station: soldering, desoldering, and smoke purification.
Unique design, integrates multiple functions, saves workspace.
Effectively removes harmful gases during soldering, protecting users; ideal for labs, R&D, and repair environments.
With intelligent sleep function, energy-saving.
Microcomputer temperature compensation, temperature error less than ±1°C.
Password management function.
Anti-static design, safe for sensitive components.
USB interface with dual voltage output; supports phone charging and maintenance use.
