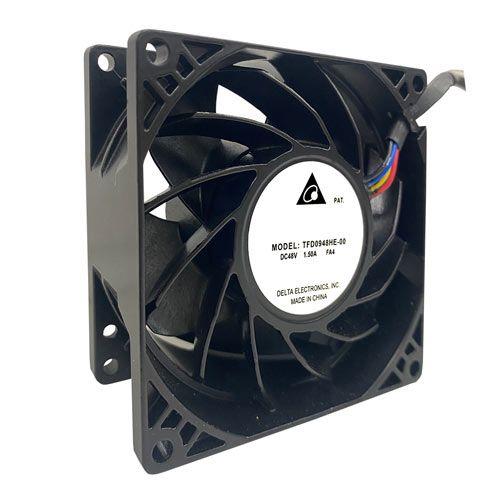

Delta Electronics, Inc. TFD0948HE-00P8 Tubeaxial Fan, 92x92x38mm, 48VDC, 144.58CFM, 65.5dBA, 10500RPM, , Tach/PWM, IP68

Life: 90000 Hour

Size: 92 mm

Depth: 38 mm

Noise: 65.5 dBA

Speed: 9000 RPM

Width: 92 mm

Height: 92 mm

Length: 92 mm

Airflow: 144.6 CFM (4.1 m3/min)

Features: Tachometer, PWM

IP Rating: IP68

Lead Length: 300 mm

Unit Weight: 215 g

Bearing Type: Ball

Current Type: DC

Power Rating: 36 W

Pressure Type: 2.429 inH2O

Housing Material: Plastic

Termination Style: Wire Leads - 4

Frame Dimensions - mm: 92 mm L x 92 mm W x 38 mm H

Operating Supply Voltage: 48 VDC
