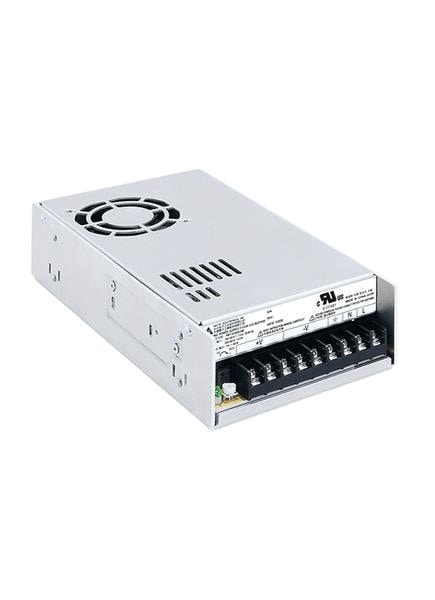

Delta Electronics, Inc. PMT-5V350W1AM Single Phase Power Supply 300W 5V 60A Panel Mount

Width: 115 mm (4.528 in)

Height: 50 mm (1.969 in)

Length: 215 mm (8.465 in)

Industry: Industrial

Approvals: CSA, IEC, UL60950-1

Efficiency: 76 %

Unit Weight: 630 g

Output Power: 300 W

Input Voltage: 90 VAC to 132 VAC, 180 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 60 A

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 20 C
