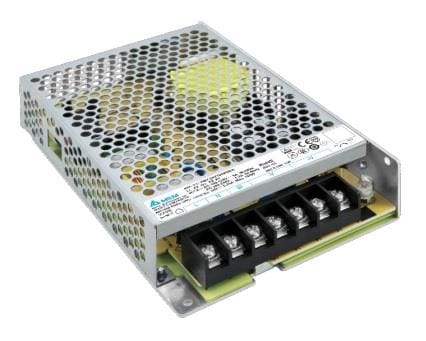

Delta Electronics, Inc. PMT-12V150W2BA Switching Supplies 150W / 12V

Width: 97 mm

Height: 30 mm

Length: 159 mm

Industry: Industrial

Approvals: IEC/EN60335-1, IEC/EN61558-1, IEC/EN61558-2-16

Compliance: IEC/EN60335-1, IEC/EN61558-1, IEC/EN61558-2-16

Efficiency: 85.8 %

Unit Weight: 354 g

Output Power: 150 W

Input Voltage: 90 VAC to 132 VAC

Mounting Style: Panel

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3.75 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Input Voltage, Nominal: 200 VAC to 240 VAC

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 12 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 30 C
