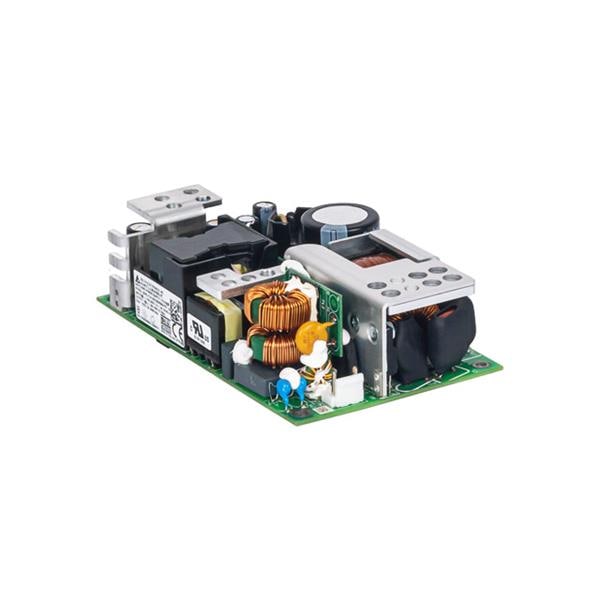

Delta Electronics, Inc. PJH-24V300WBCA Switching Supplies 300W / 24V - Open Frame PFC, remote On/Off

Width: 76.2 mm (3 in)

Height: 35.8 mm (1.409 in)

Length: 127 mm (5 in)

Industry: Industrial

Approvals: IEC 60950-1, UL 60950-1, IEC 62368-1, EN 62368-1, UL 62368-1

Efficiency: 94 %

Unit Weight: 450 g

Output Power: 300 W

Input Voltage: 90 VAC to 264 VAC

Mounting Style: Panel

Input Frequency: 50 Hz to 60 Hz

Load Regulation: Regulated

Isolation Voltage: 4 kVAC

Number of Outputs: 1 Output

Open Frame/Enclosed: Open Frame

Output Current-Channel 1: 12.5 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
